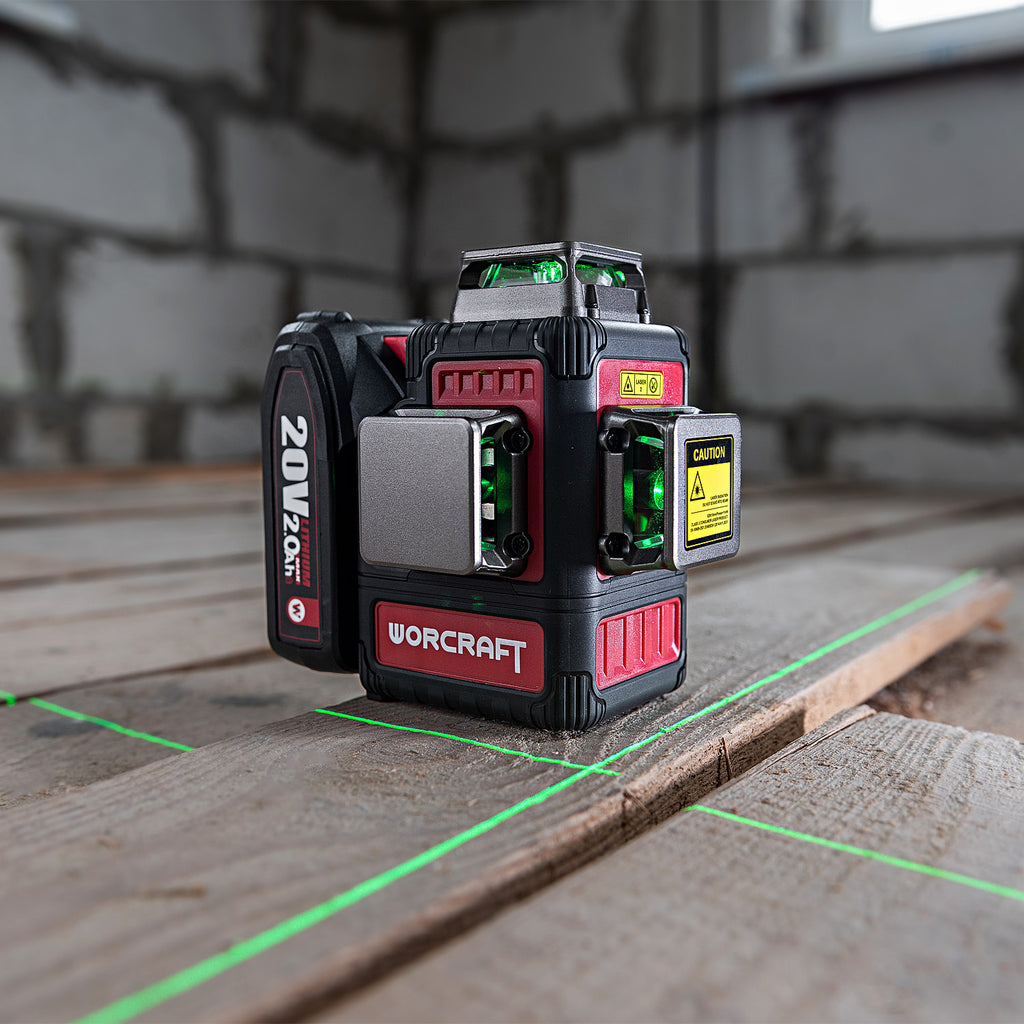

  • A WORCRAFT 20V 4S laser level standing on wooden planks in a construction setting, with green laser lines projected on the floor and a blurred brick wall in the background.
  • A red and black 20V 1M laser level sits on a weathered wooden deck, emitting a green laser grid across the surface.

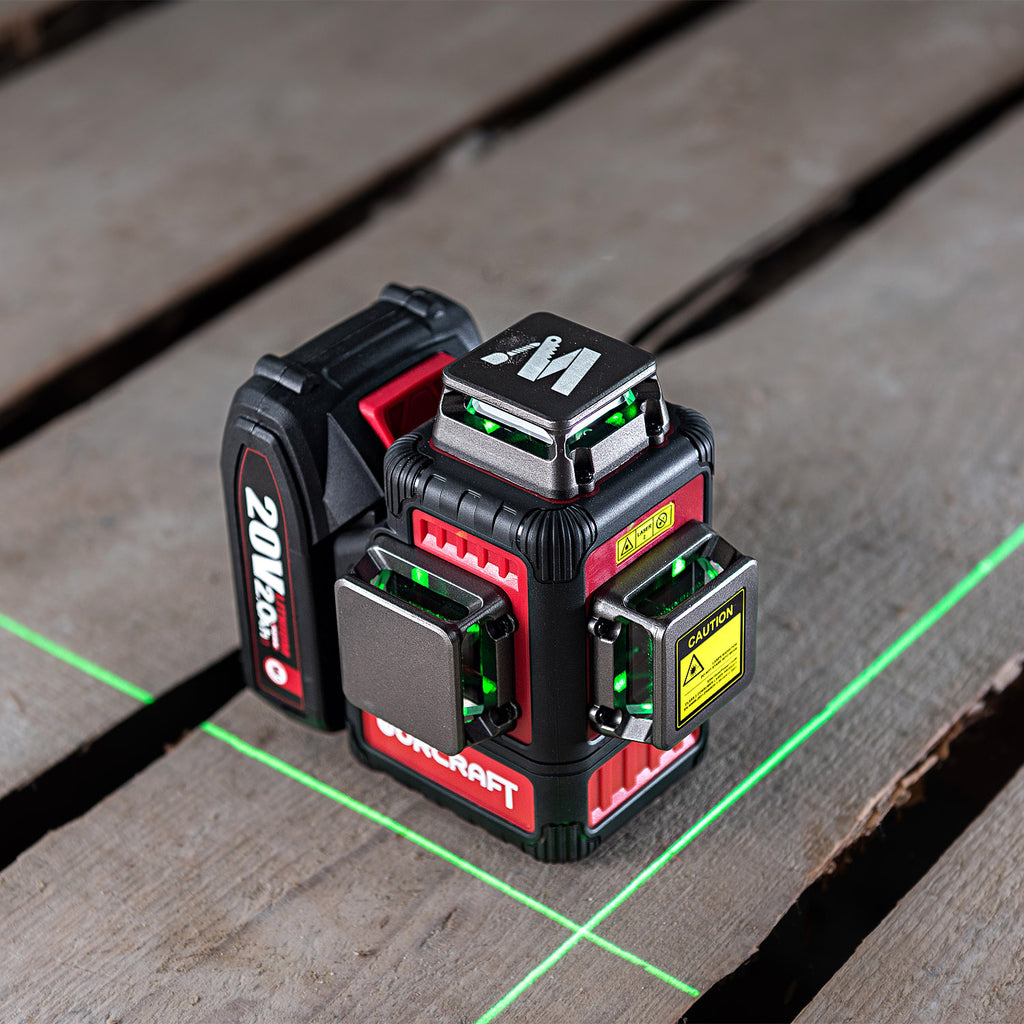

  • A red and black laser level device with green laser lines projected on a weathered wooden plank surface. The device has visible brand markings including 'Worcraft' and '20M'.

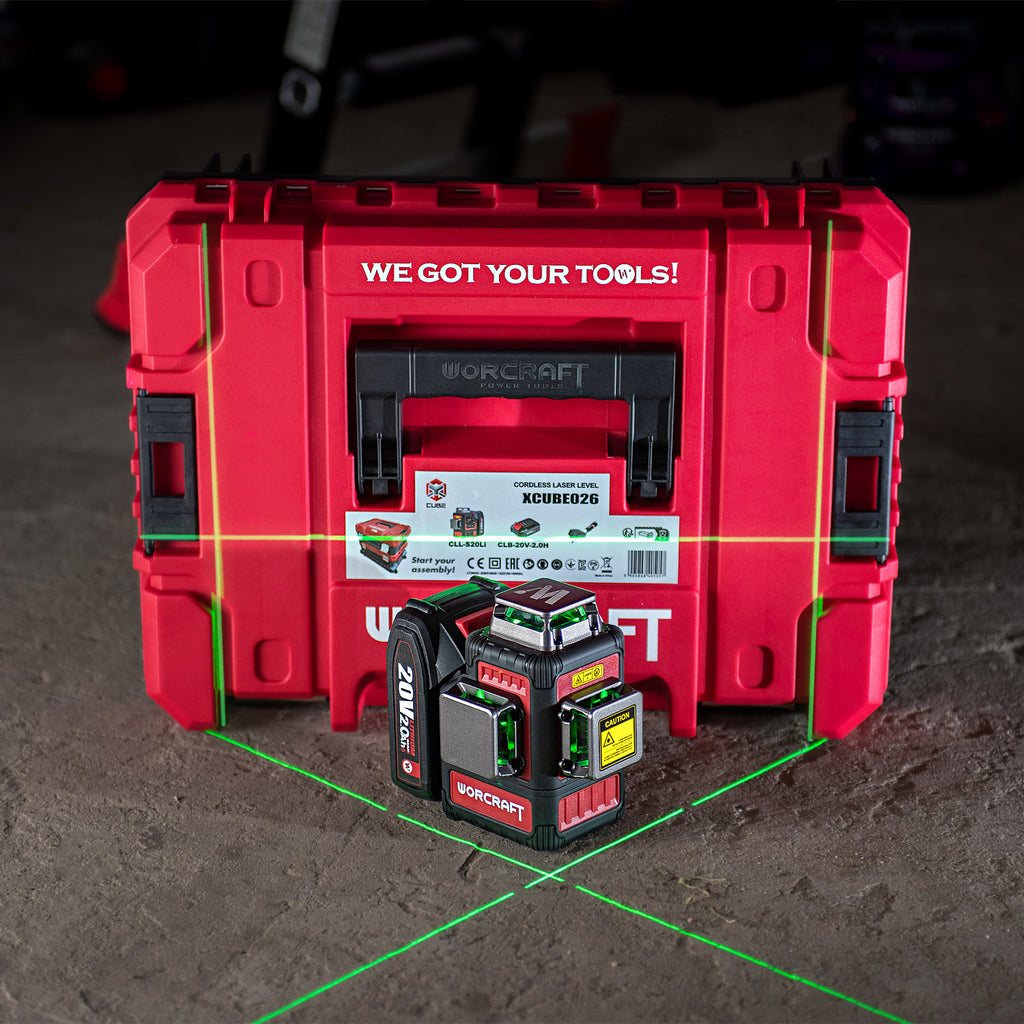

  • A red Worcraft Workstation carrying case with a black and red Worcraft XCUBE026 K20 Pro laser level placed in front of it on a concrete floor. Green and red laser lines are visible on the floor, and the background is a dark workshop environment.

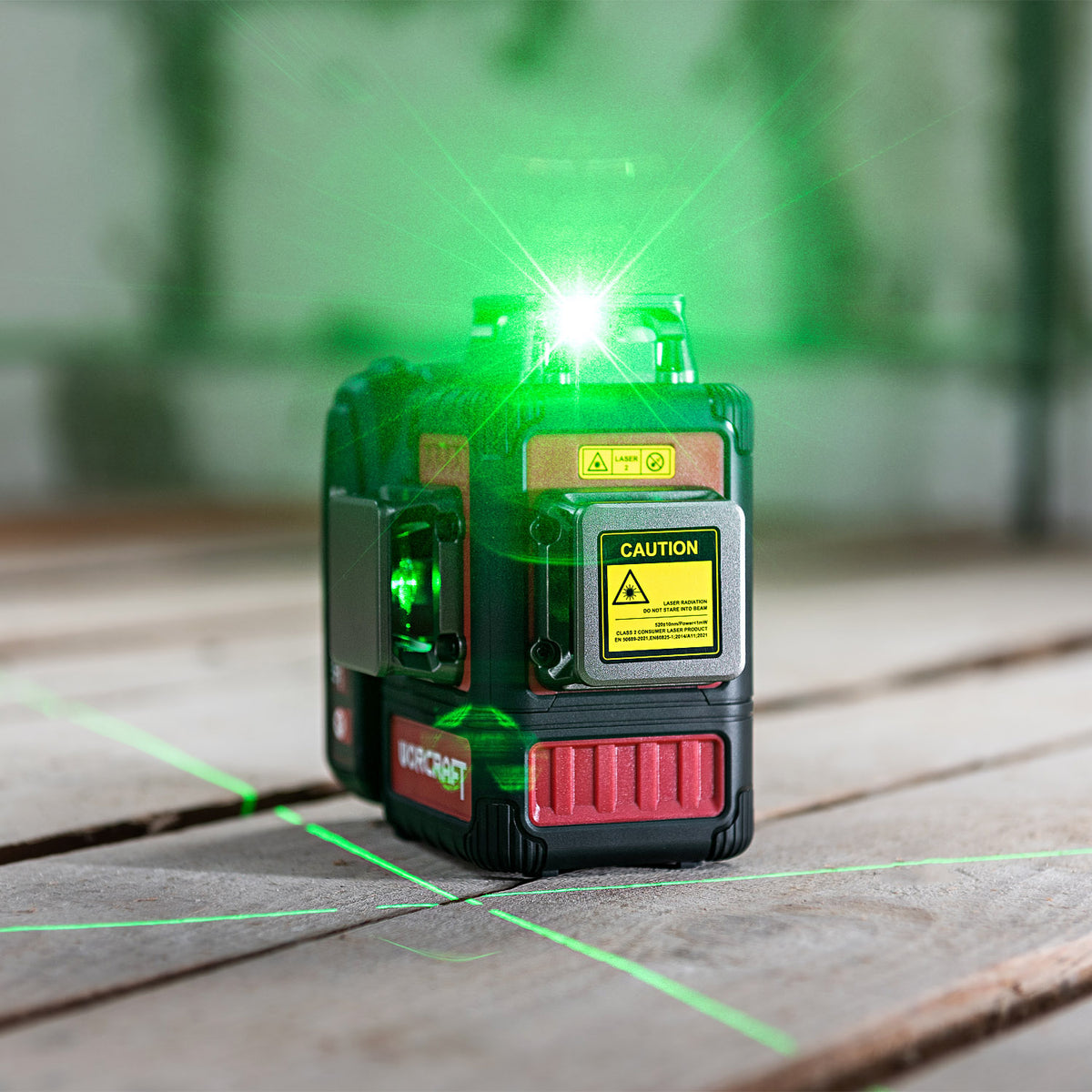

  • A Worcraft brand green laser level device on a wooden deck, emitting a bright green laser beam upward and crosswise across the surface.
  • A WORCRAFT 20V MAX laser level mounted on a tripod stand in a workshop setting.
  • Worcraft tool laser level device with green laser lines projected in a cube shape, shown in a workshop setting.
  • A Worcraft 20V 2.0Ah cordless laser level device in black and red, shown with its battery attached on a wooden surface with a blurred concrete background.
  • A WORCRAFT 20V 2.0Ah laser level standing on a concrete floor, with its green laser lines projected across the background.

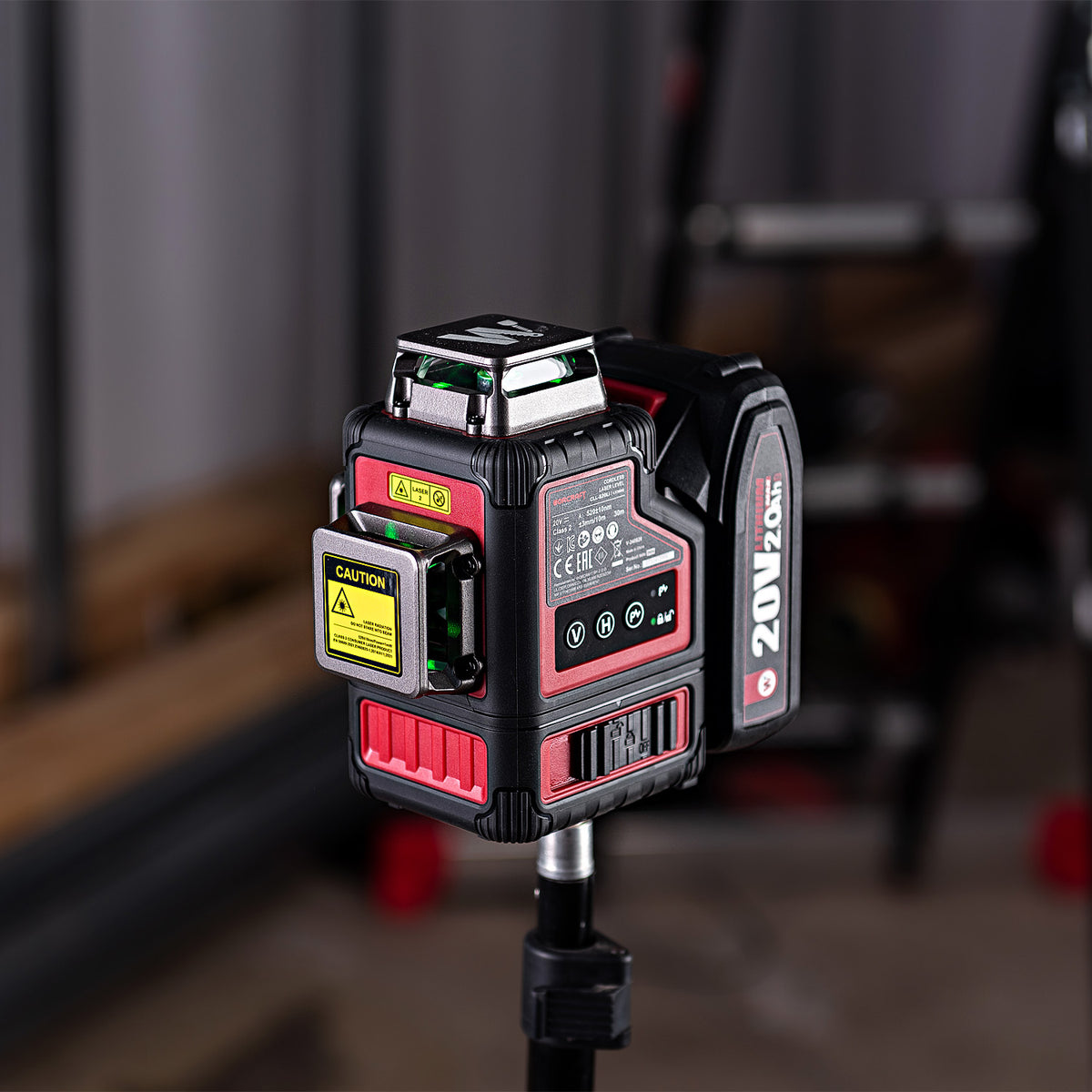

  • A red and black 20V 20W laser level mounted on a tripod, shown in a workshop setting with a blurred background.

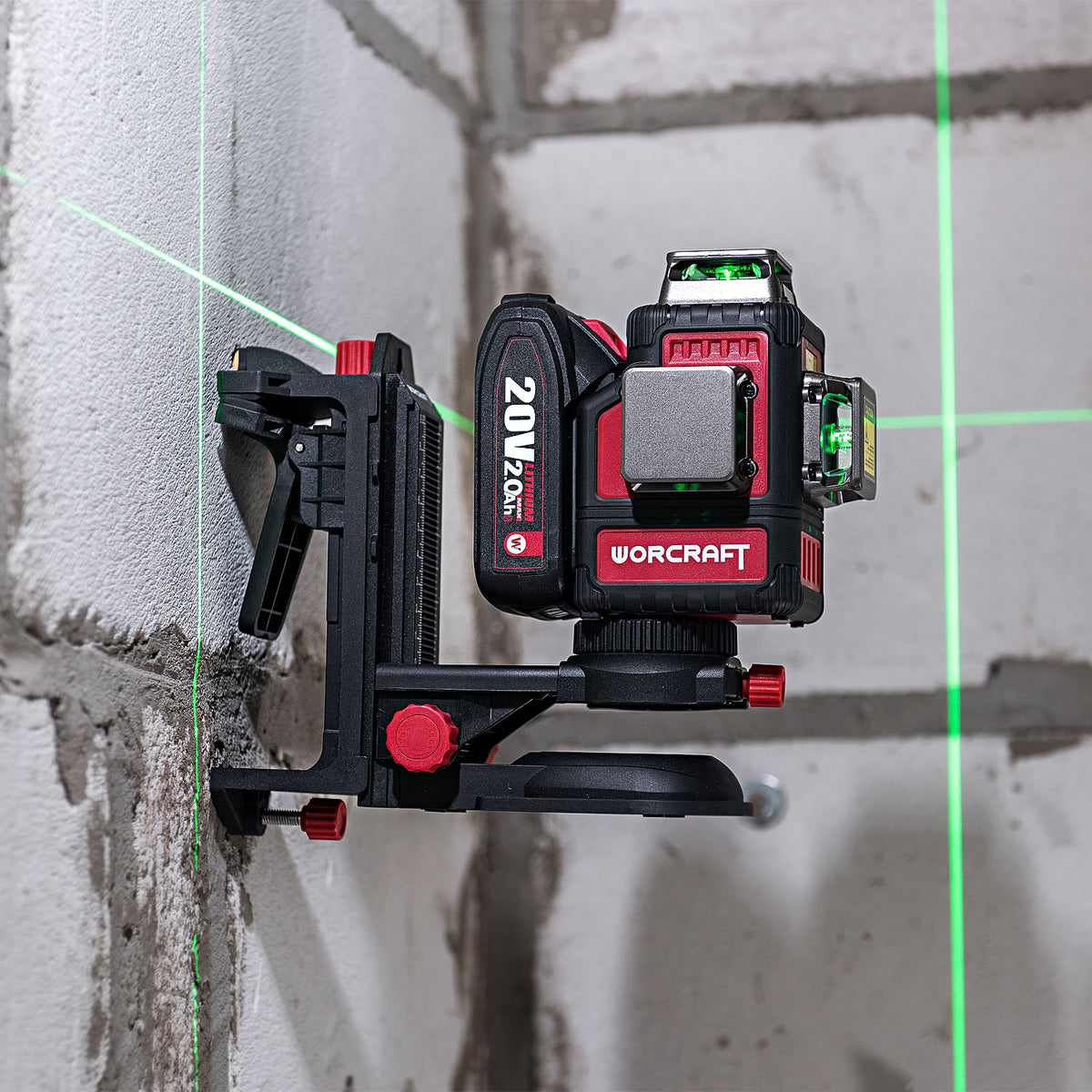

  • A red and black WORCRAFT 20V MAX 3-in-1 laser level mounted on a black clamp against an unfinished concrete wall, with green laser lines projected on the wall.

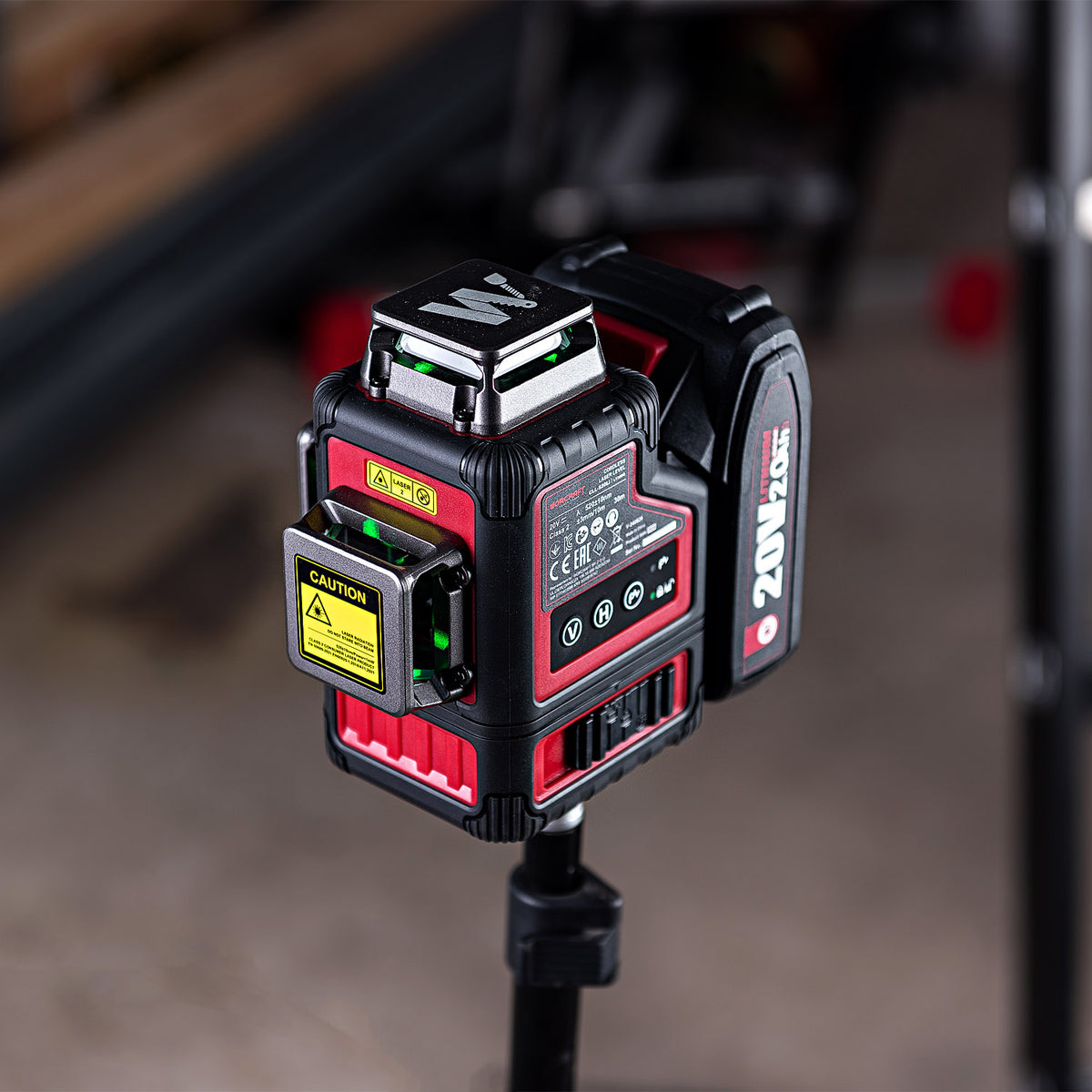

  • A red and black 20V MAX laser level mounted on a black tripod stand, photographed in a workshop environment with a blurred background.
  • A red Worcraft XCUBE laser level kit with two red and black laser units in front of a matching red carrying case, set against a dark gray background with green laser lines projected on the floor.

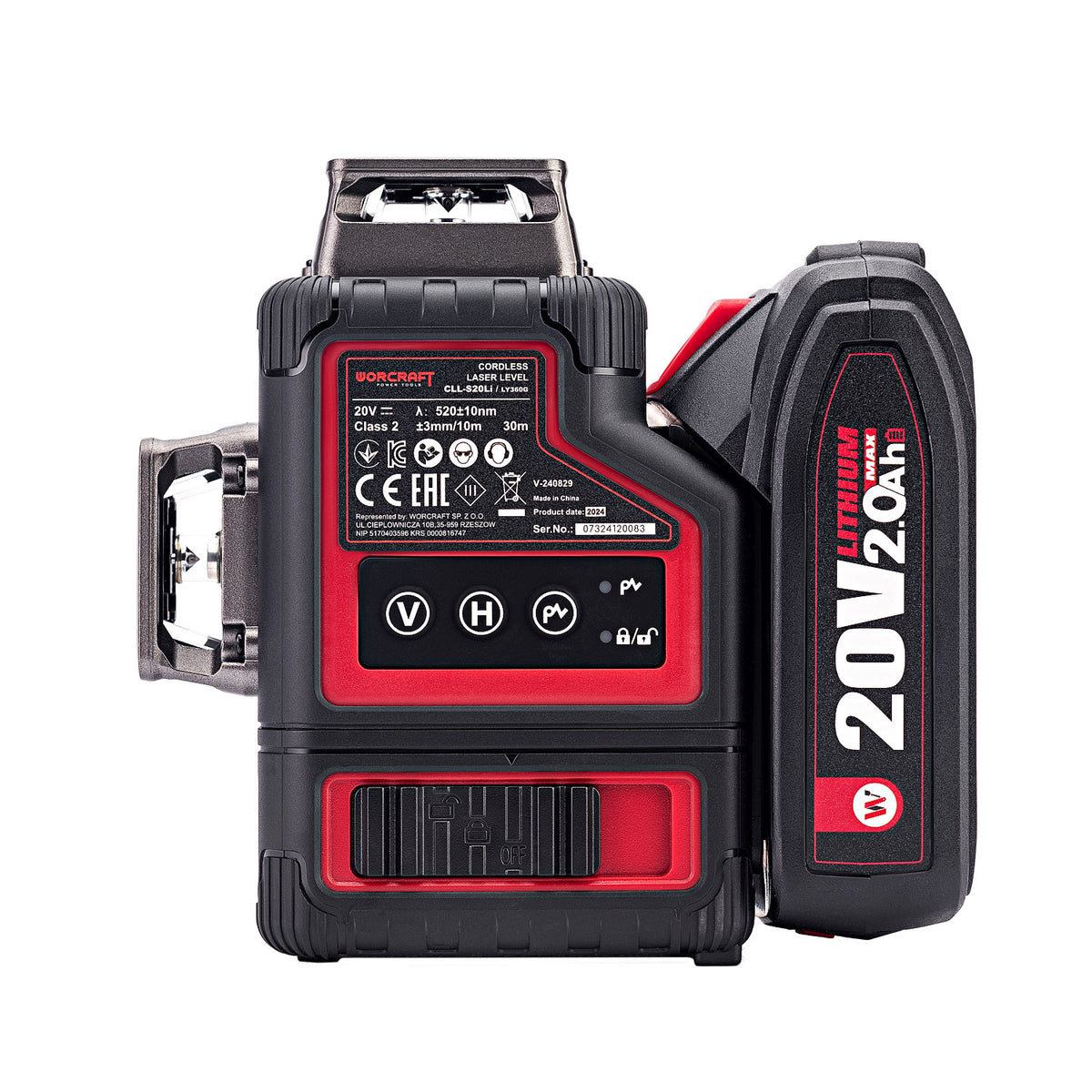

  • A Worcraft 20v laser level with a red and black battery pack, shown on a solid white background.
  • A red and black laser level device with a battery pack, shown on a clean white background. The device features a black body with red panels, a top-mounted target plate, and a side-mounted battery labeled '20V 2000mAh'.
  • A WORCRAFT 20V 2.0Ah Lithium+ battery pack with an integrated mounting bracket, shown on a solid white background.
  • A red and black laser level tool with two attached battery packs, shown on a solid white background. The brand 'worCRAFT' is visible on the lower front of the unit.
  • Close-up of a red and black plastic tool box with a silver metal latch, showing the WORCRAFT brand name on the latch and side.
  • Close-up of a Worcraft laser level device in black and red, showing the front control panel with voltage, height, and level indicators, and part of the battery pack on the right side.

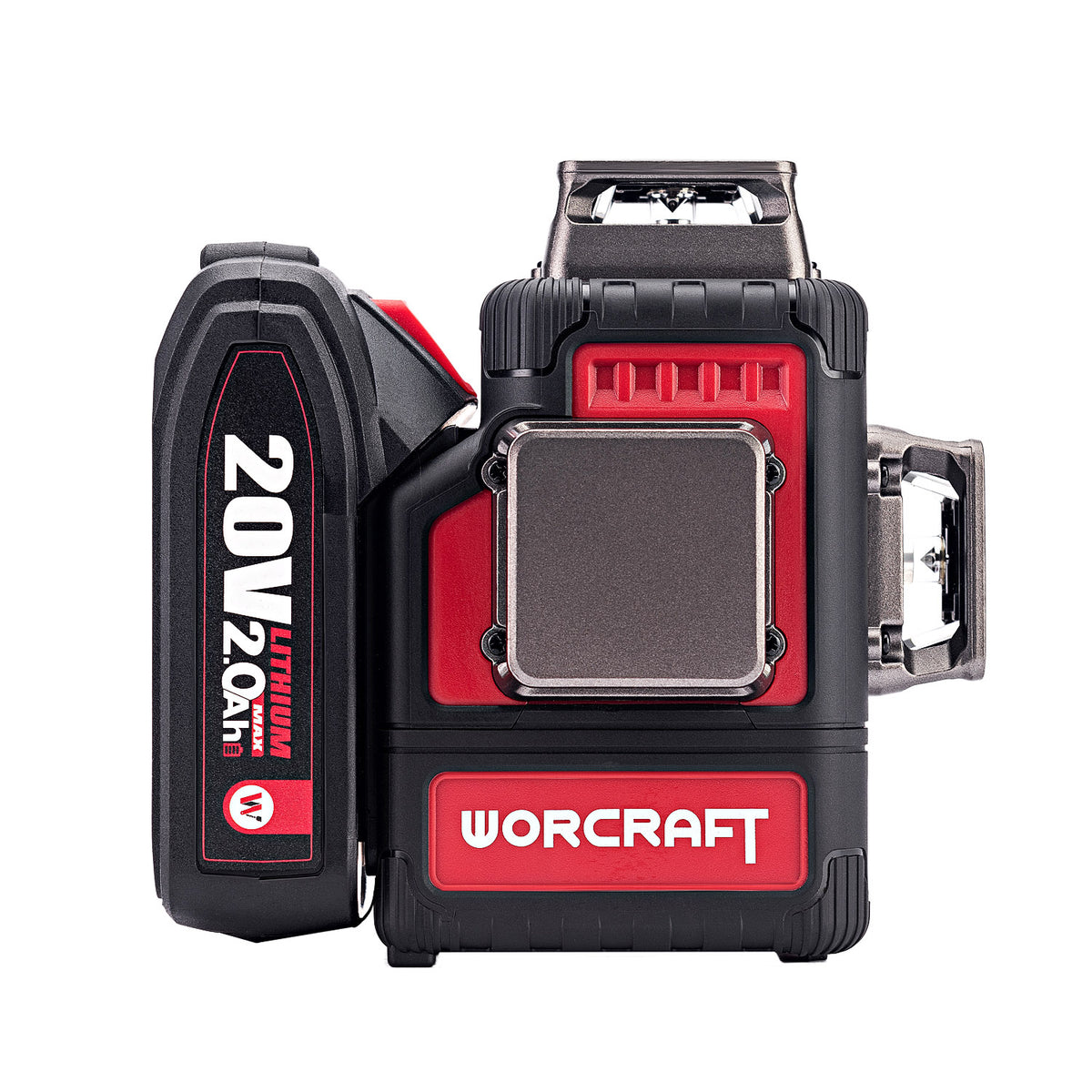

  • A WORCRAFT 20V MAX lithium-ion cordless laser level with an attached battery pack, shown on a solid white background.

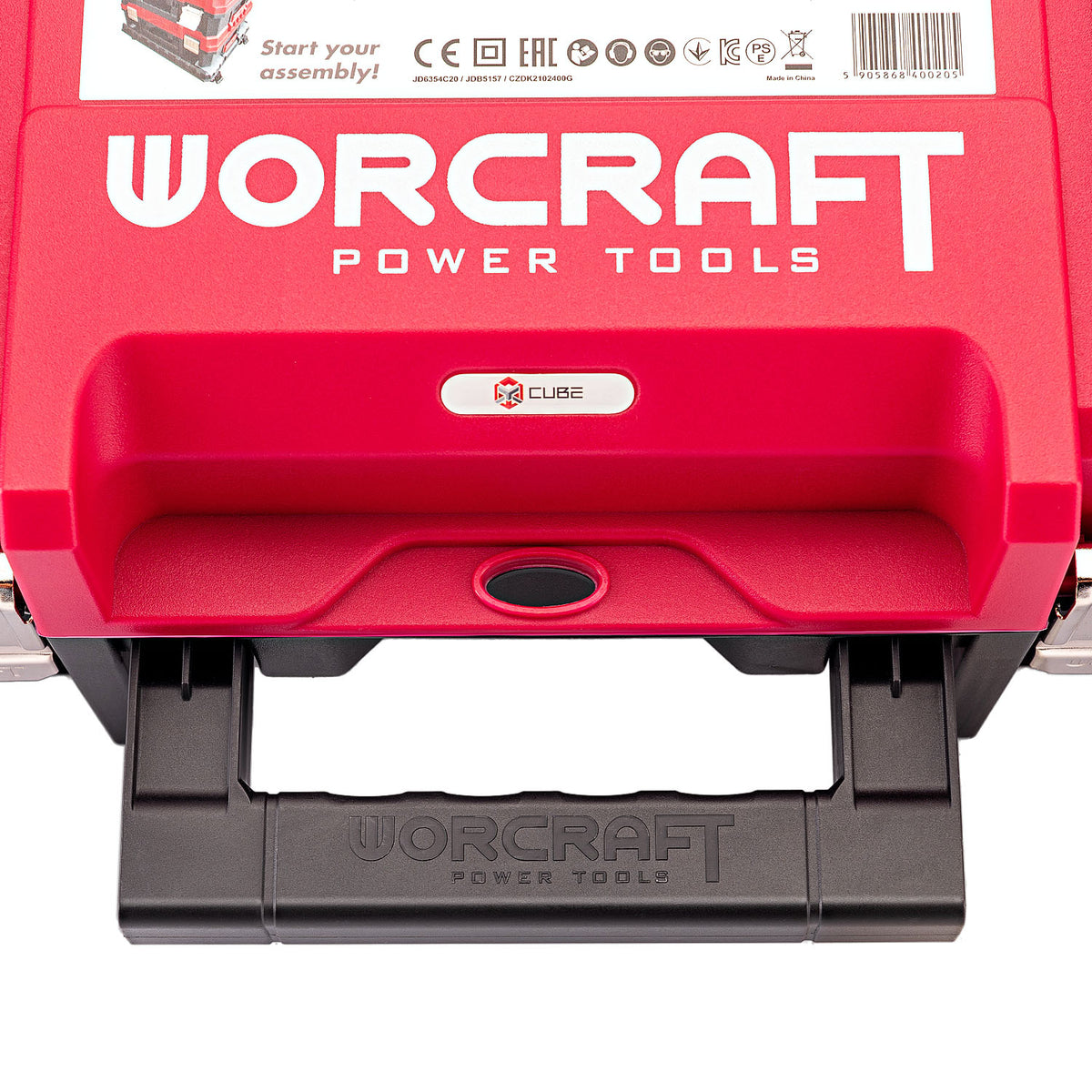

  • Close-up of a red and black WORCRAFT Power Tools tool case or accessory housing, showing the brand name in large white letters, a small CUBE badge, and a black handle with WORCRAFT embossed on it.
  • A Worcraft 20V 1800-lm laser level mounted on a black and red accessory stand, shown against a solid white background.
  • An open red and black XCUBE laser level kit case on a white background, showing included accessories such as a red laser level battery pack, green-tinted eyewear, a target plate, and other tools in a molded black tray.
  • An open red and black WORCRAFT CUBE kit case showing the included tools and accessories, photographed on a clean white background.
  • Close-up of a red Worcraft power tools carrying case with a black handle and a white product label on top, photographed on a white background.
  • A red and black laser level mounted on a black leveling base with red adjustment knobs, shown against a solid white background.

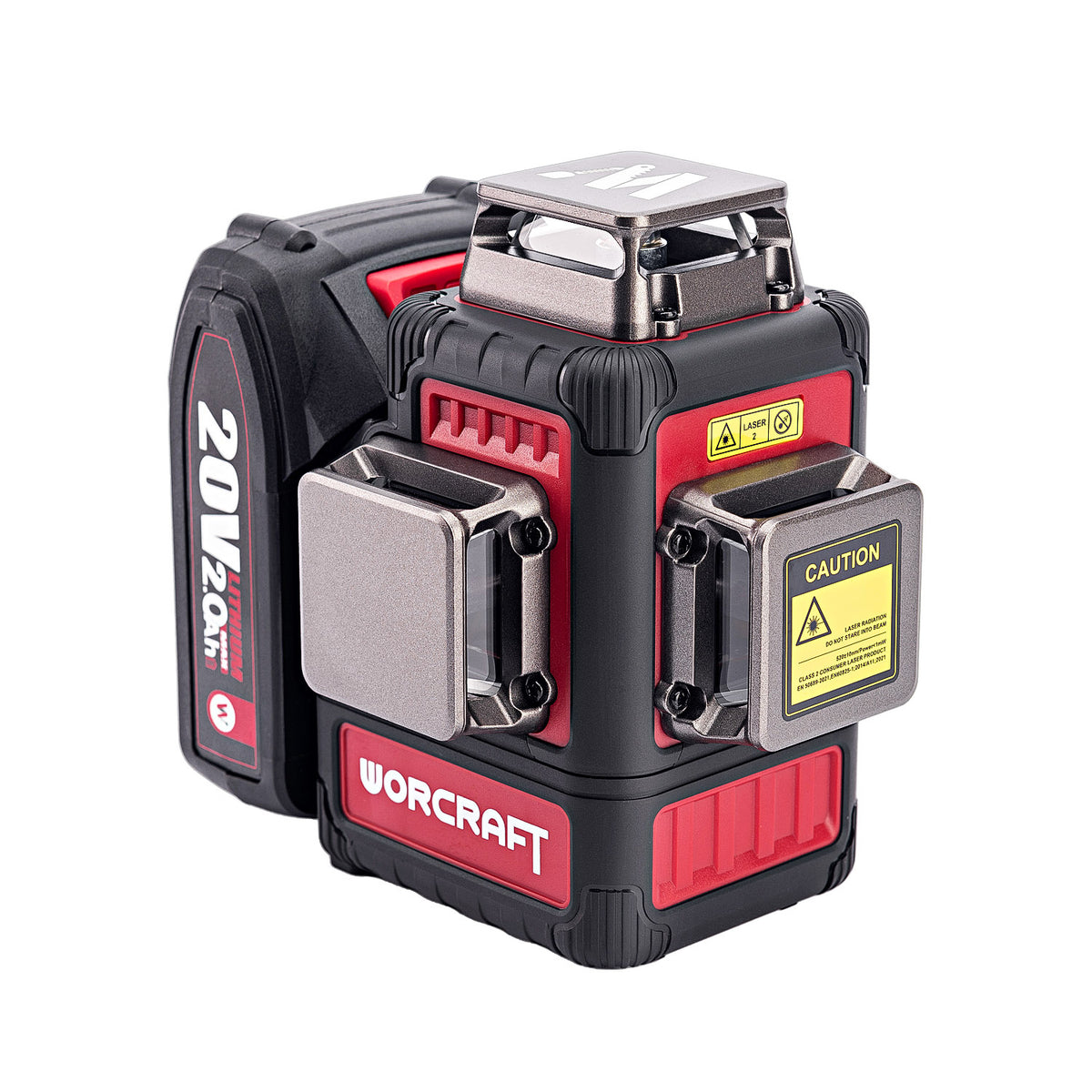

  • A Worcraft 20V 24A laser level device with a black and red plastic housing, featuring a metallic top reflector and warning labels, shown on a solid white background.
  • A Worcraft 20V 2.0Ah Lithium-ion laser level mounted on a black and red quick-release clamp stand, shown against a solid white background.
  • A black Worcraft vertical clamp with a measurement scale on the side, red adjustment knobs, and a suction cup base, shown on a solid white background.

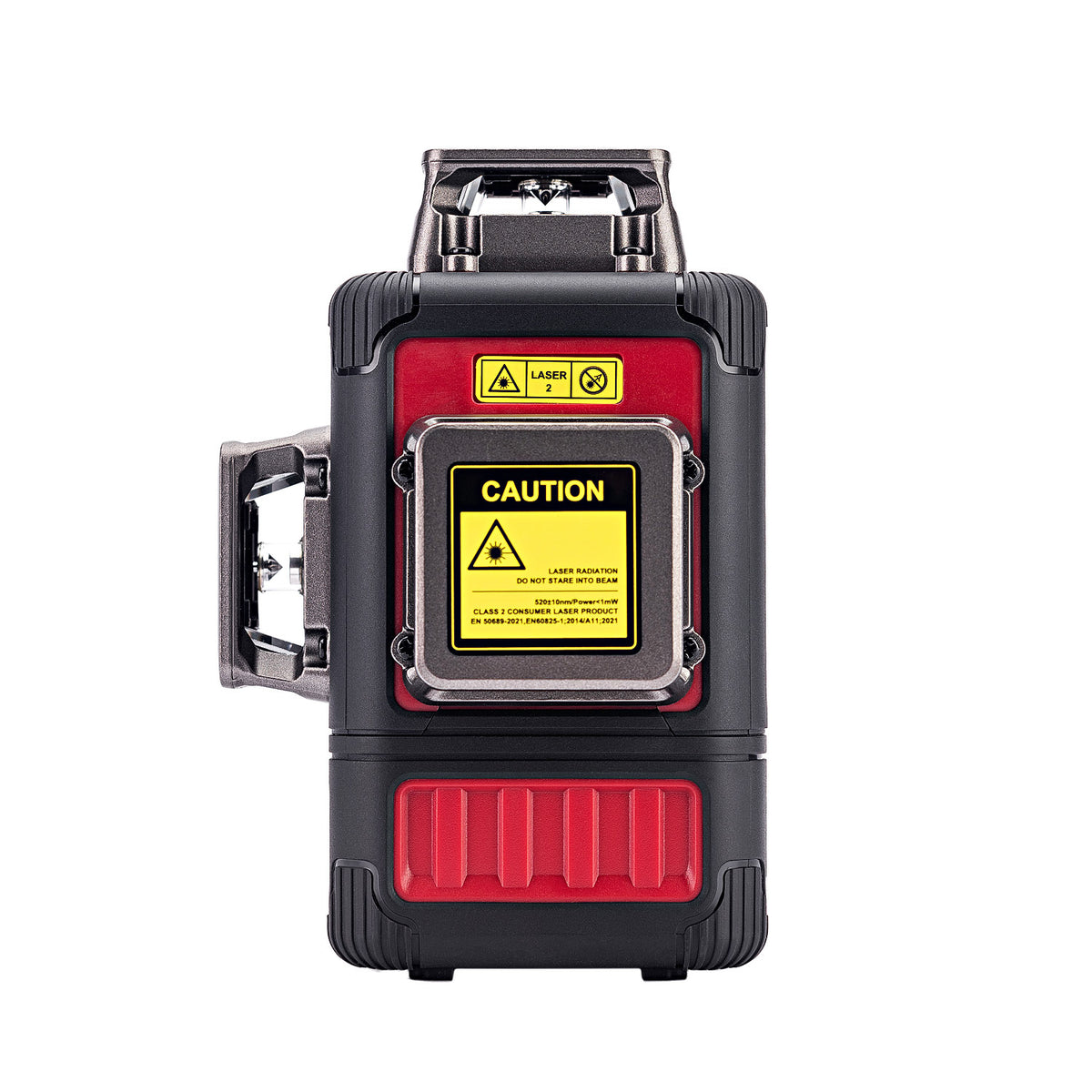

  • A red and black laser level device with a yellow caution label on the front, shown against a plain white background.
  • A cordless laser level and level square set from Worcraft on a clean white background. The set includes a red and black laser level with a 20V 2.
  • A red heavy-duty tool storage case with black latches and a central handle cutout, featuring the white 'WORCRAFT POWER TOOLS' logo and a product label on the front, isolated on a white background.

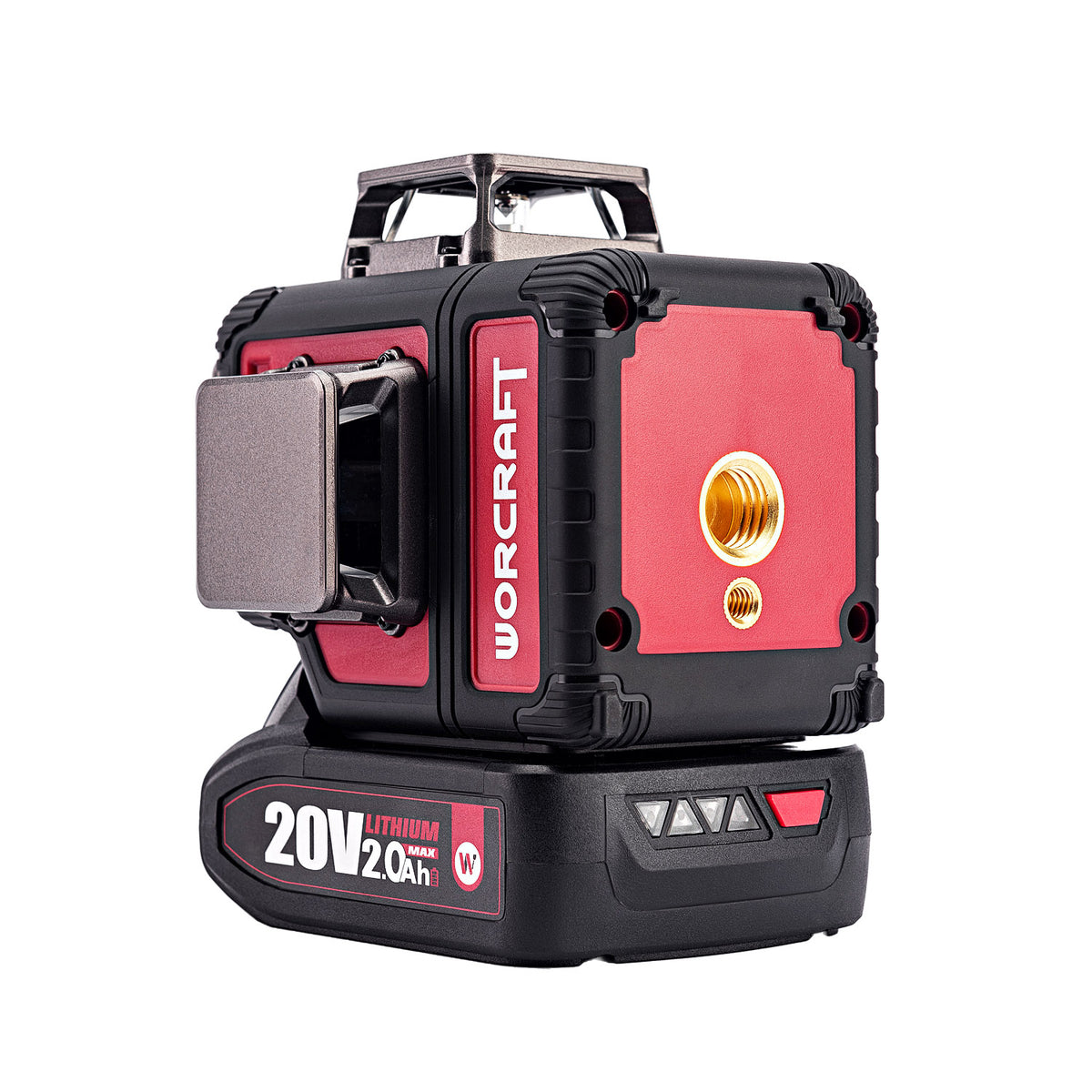

  • A red and black WORCRAFT 20V 2.0Ah lithium-ion cordless laser level, shown with its battery pack attached against a solid white background.

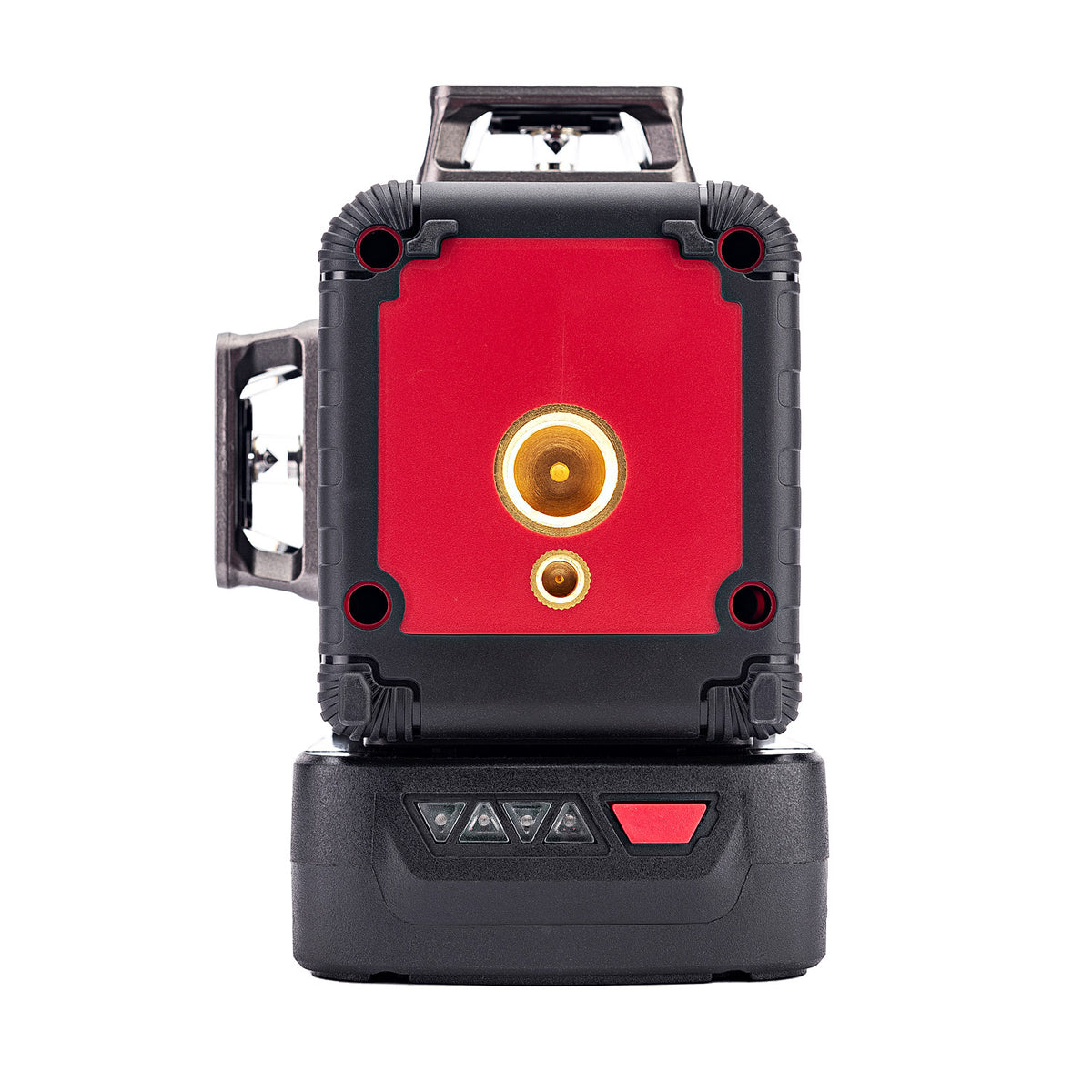

  • A red and black laser level device shown from the front on a plain white background.

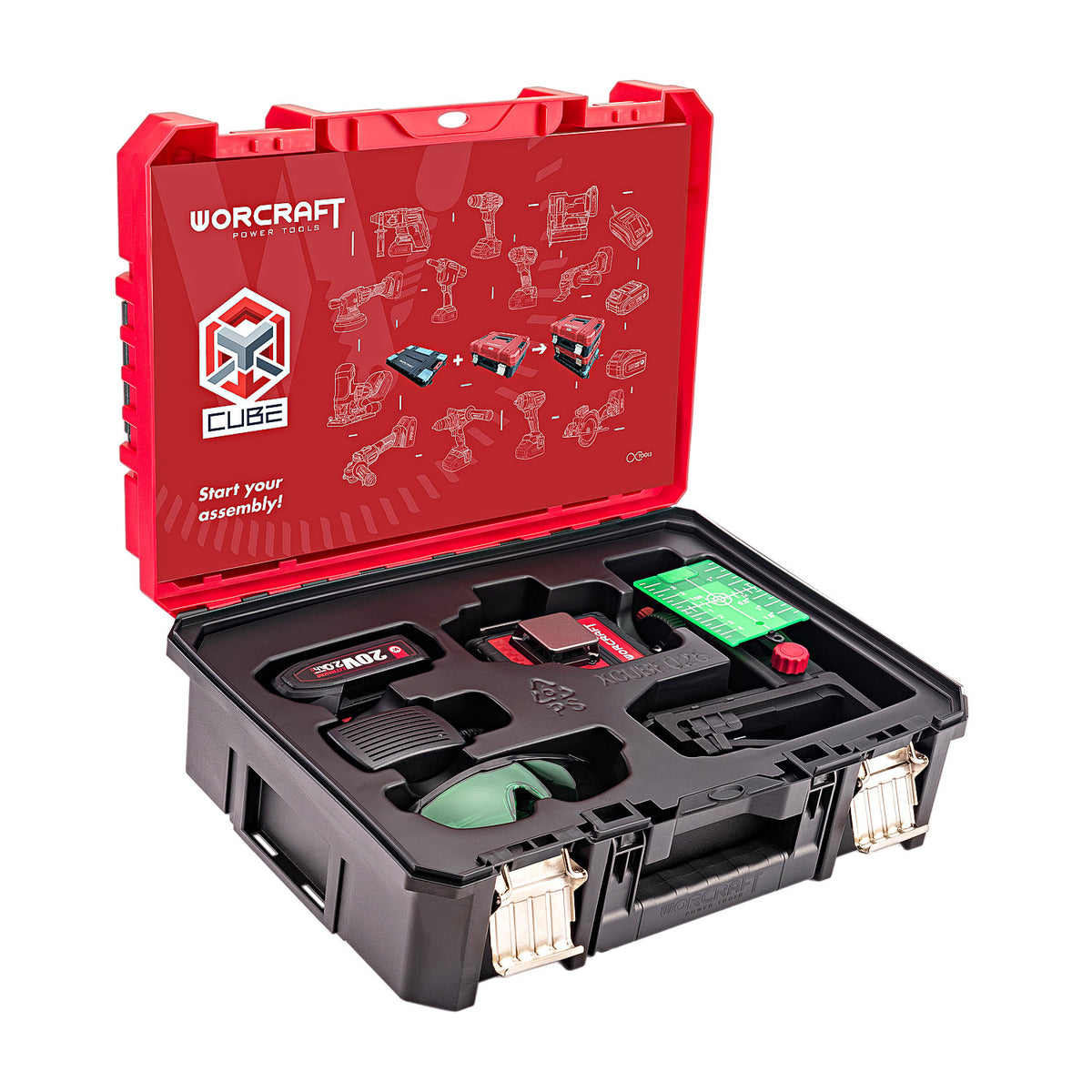

  • A red and black Worcraft CUBE assembly kit case shown open on a white background, with tools and accessories arranged in the molded interior.

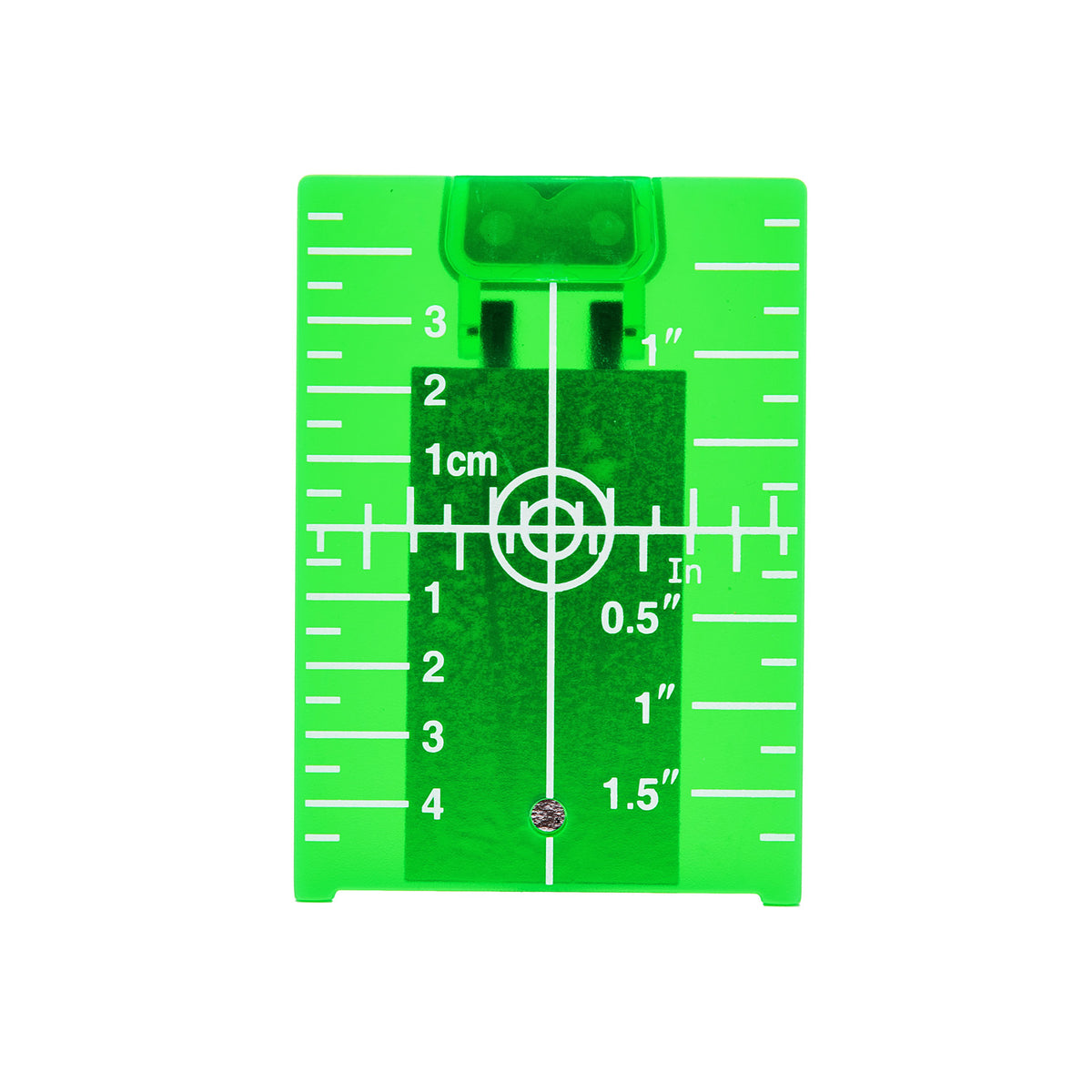

  • A bright green plastic level square with white printed measurement markings, including centimeter and inch scales, centered on a plain white background.
  • WorCraft 20V 12-Line Green Laser Level Set — Self-Leveling
  • A laser level kit with a black and red laser unit, a vertical leveling target, a green alignment card, a pair of green-tinted safety glasses, a battery, a charger, and an adapter, arranged on a white background.
  • A red and black WorCraft tool box with a foam insert, shown at a three-quarter angle on a white background.
  • A black camera grip accessory with red adjustment knobs, shown on a solid white background.

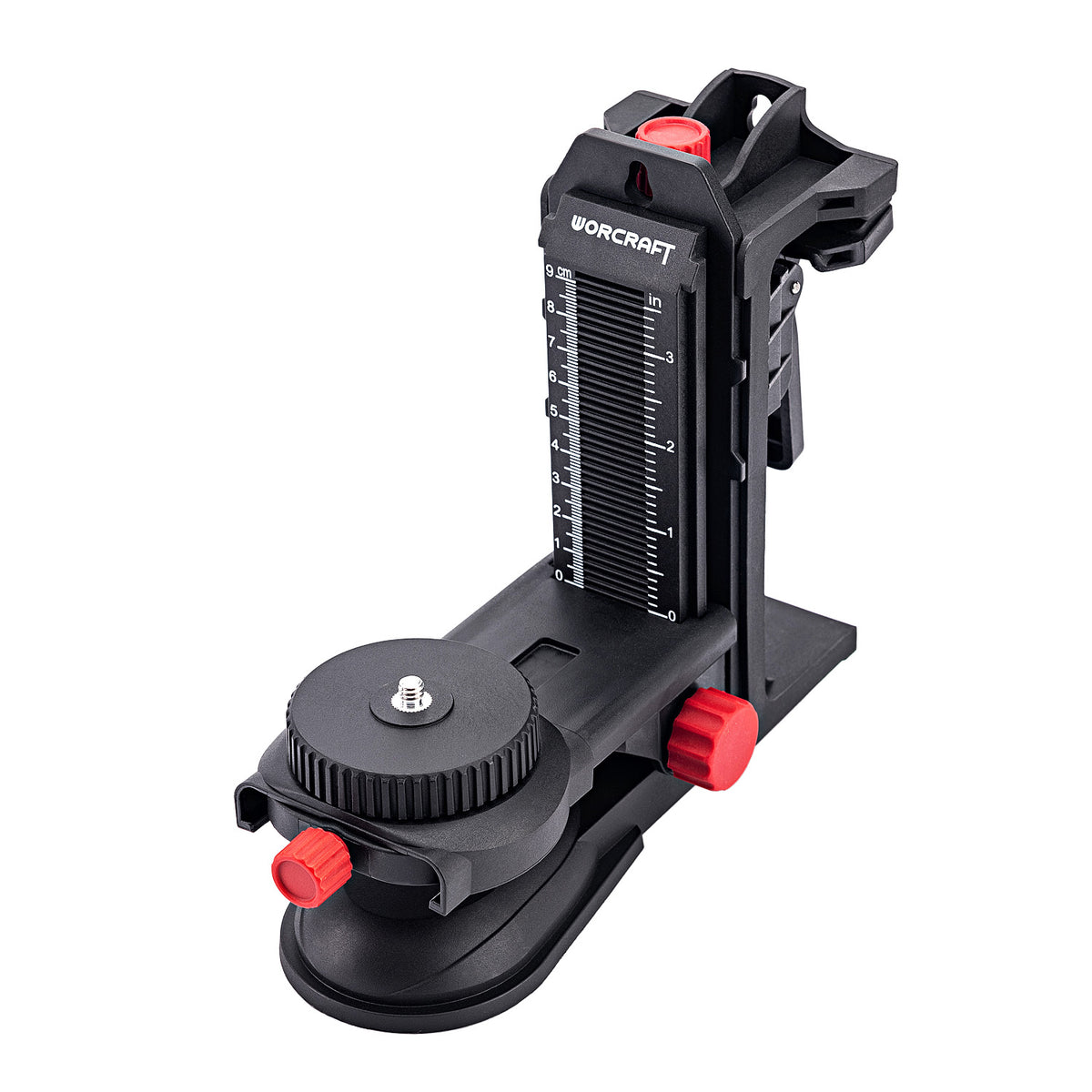

  • A black Worcraft brand window suction cup mount with red adjustment knobs and a white measurement scale on the side, shown on a solid white background.
  • A bright green plastic measuring board with white printed inch and centimeter markings, shown standing on a black support leg against a plain white background.
  • A black camera rig accessory with red adjustment knobs, shown from a side profile on a solid white background.
  • A black and red Worcraft tripod head with a vertical leveling scale and a red release button, shown against a plain white background.
  • A red and black Workshop tool box with white latches, shown on a solid white background.
  • A black camera grip extension with red adjustment knobs, shown on a solid white background.
  • Close-up of a red plastic toolbox with a black handle latch on a white background.
  • A red and black WORCRAFT tool box shown from the front, with a faded secondary view below showing the same case from the side. The box has a red top, black base, latches, and visible WORCRAFT branding on the lid. XCUBE026
  • A bright green plastic yardage/rule card with white measurement markings and a small black clip, shown on a plain white background.
  • A bright green plastic measuring tool with black plastic clips and a white rectangular insert, shown on a plain white background.
  • A black plastic mechanical component, likely a valve or pump assembly, featuring red adjustment knobs on the sides and a red switch on top, shown against a solid white background.

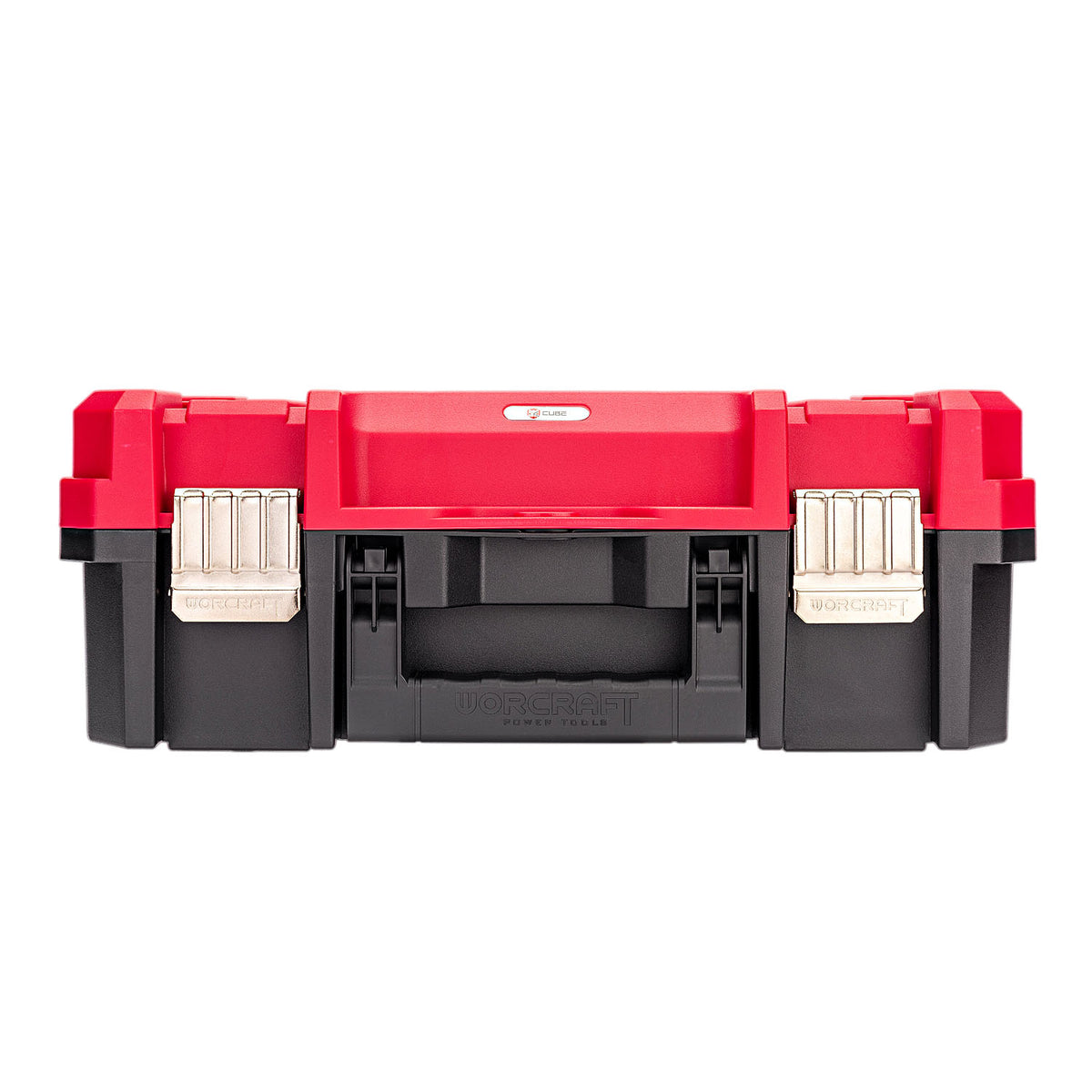

  • A red and black plastic tool box with silver metal latches, shown from the front against a plain white background.
  • Green laser safety glasses with a black frame and temple arms, shown on a solid white background.
  • Side view of shield-style safety glasses with a black frame and a bright green-tinted lens, shown on a plain white background.

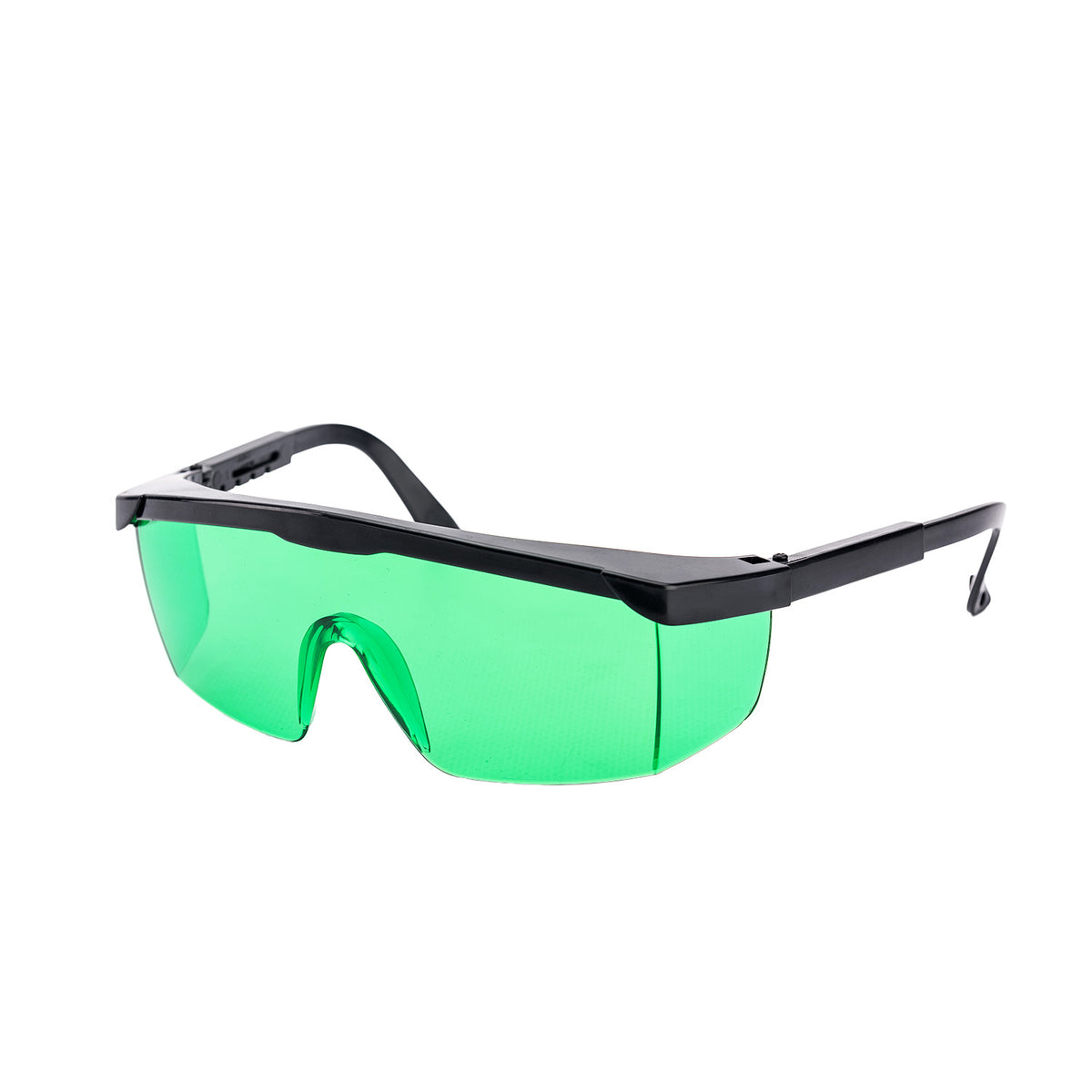

  • Shield-style safety glasses with a black frame and bright green tinted lenses, shown on a plain white background.
  • Shield-style safety glasses with a thick green-tinted lens and a black frame, shown against a plain white background.
WorCraft 20V 12-Line Green Laser Level Set — Self-Leveling

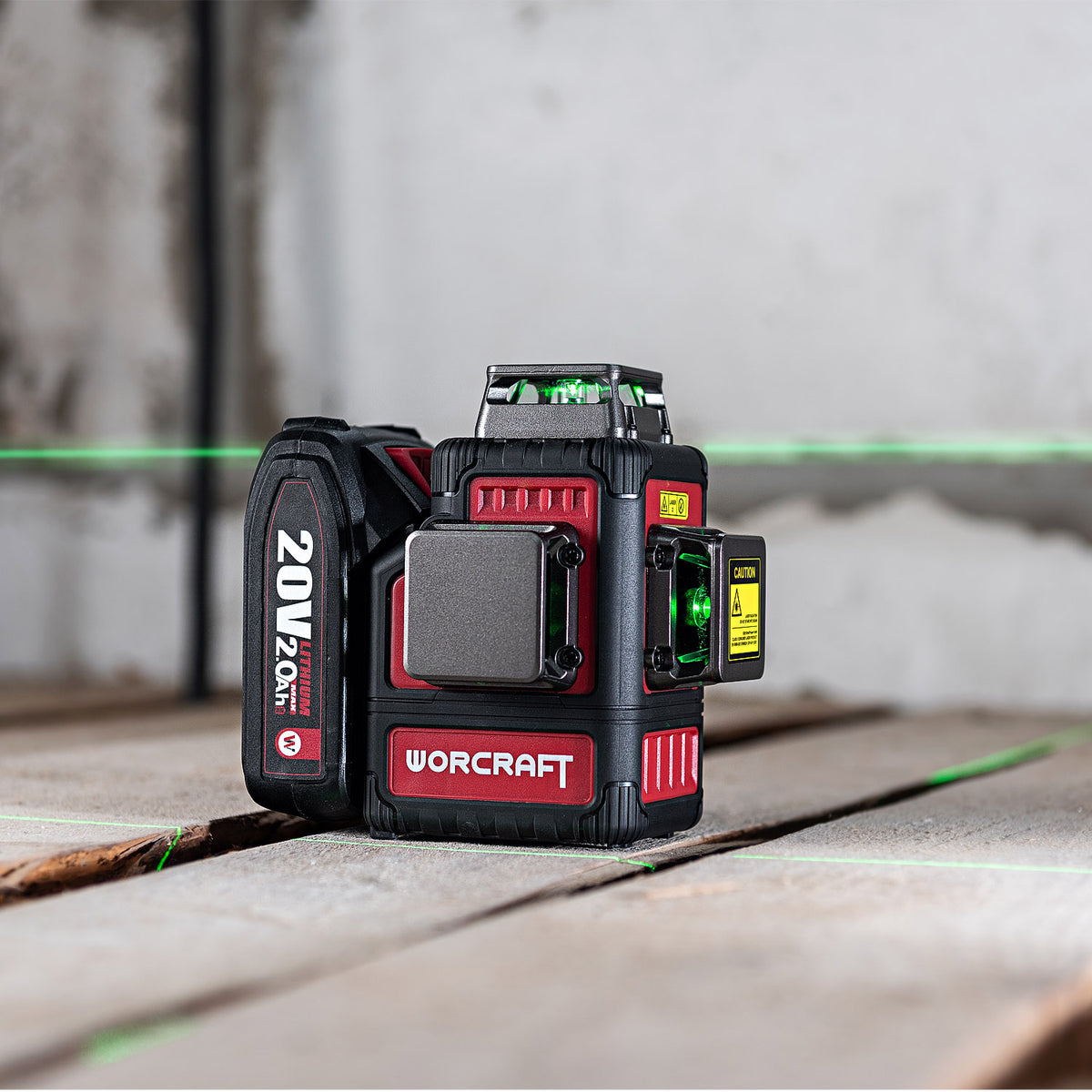

Tile a floor, hang cabinets, frame a wall, or lay out a room — the WorCraft 20V 12-Line Green Laser Level gives you bright, accurate reference lines around the entire space in seconds. Twelve green laser lines across three 360° planes auto-level in under 3 seconds, and pulse mode with the included detector extends the working range to 50 m (164 ft) for outdoor and bright-light conditions. Powered by the WorCraft 20V ONE FOR ALL battery — no disposable cells required.

Built for Layout and Install

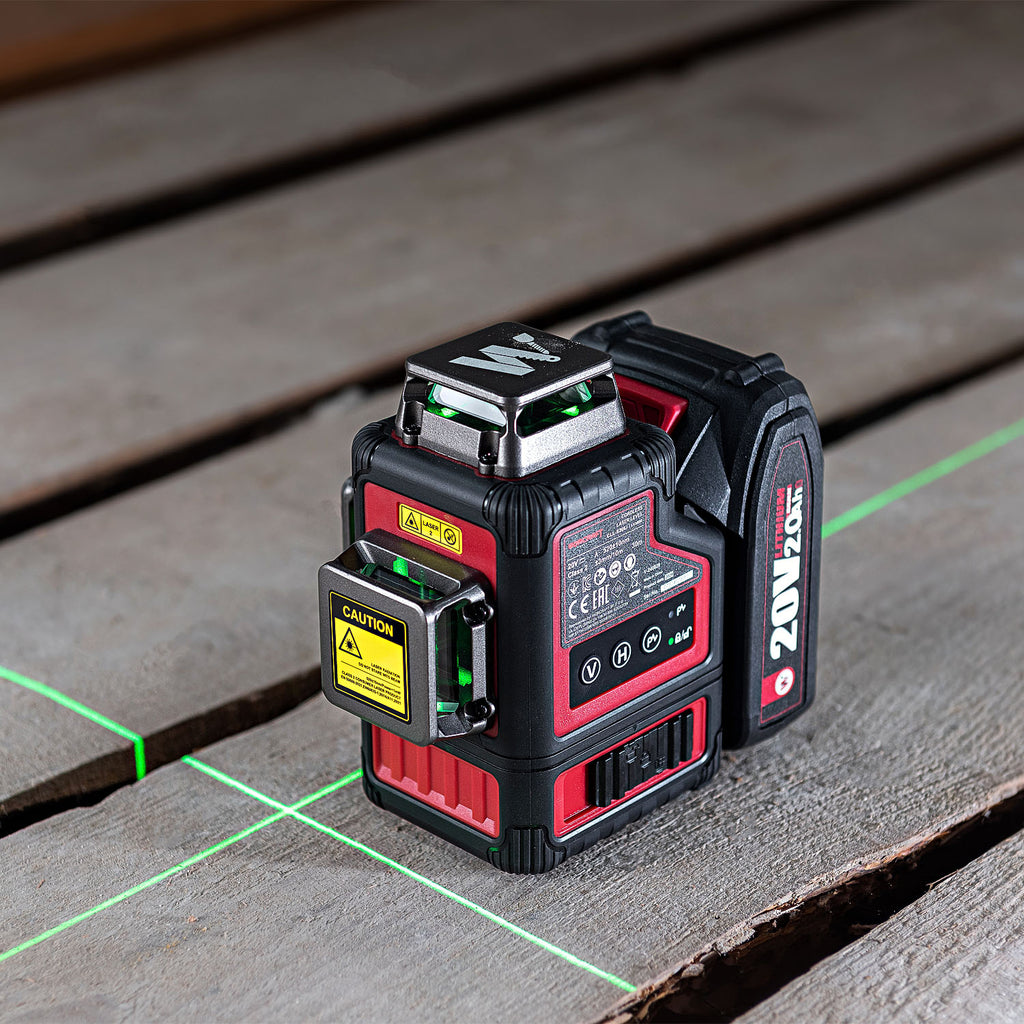

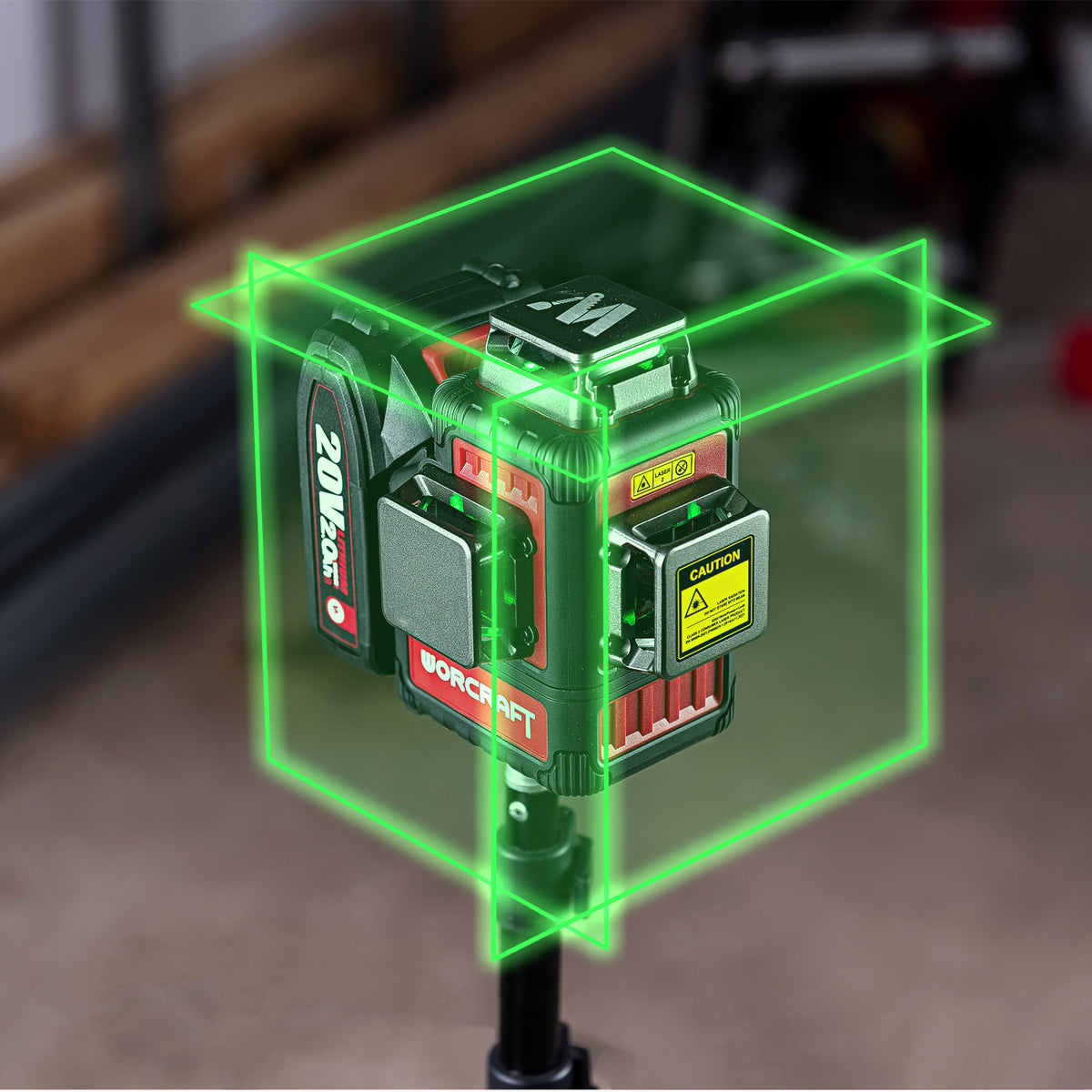

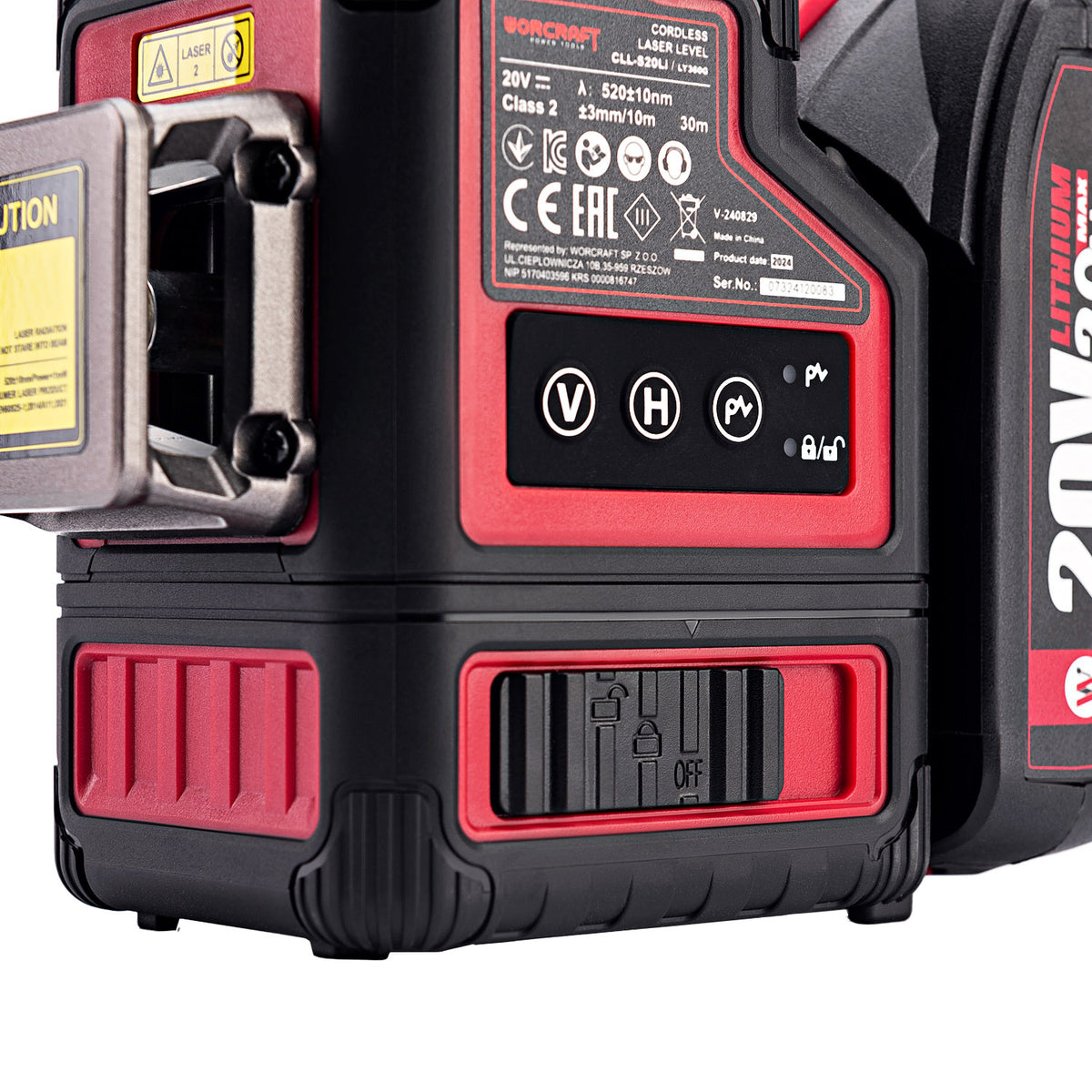

Three 360° planes project 12 green lines for full-room level and plumb references. Auto-leveling gets you accurate in under 3 seconds, and a lockable line mode holds alignment at any angle for non-level applications. Separate control of vertical and horizontal lines lets you show only what you need. Green beams are significantly easier to see than red — visible up to 30 m (98 ft) by eye, and up to 50 m (164 ft) with the included laser detector in pulse mode.

Versatile Mounting

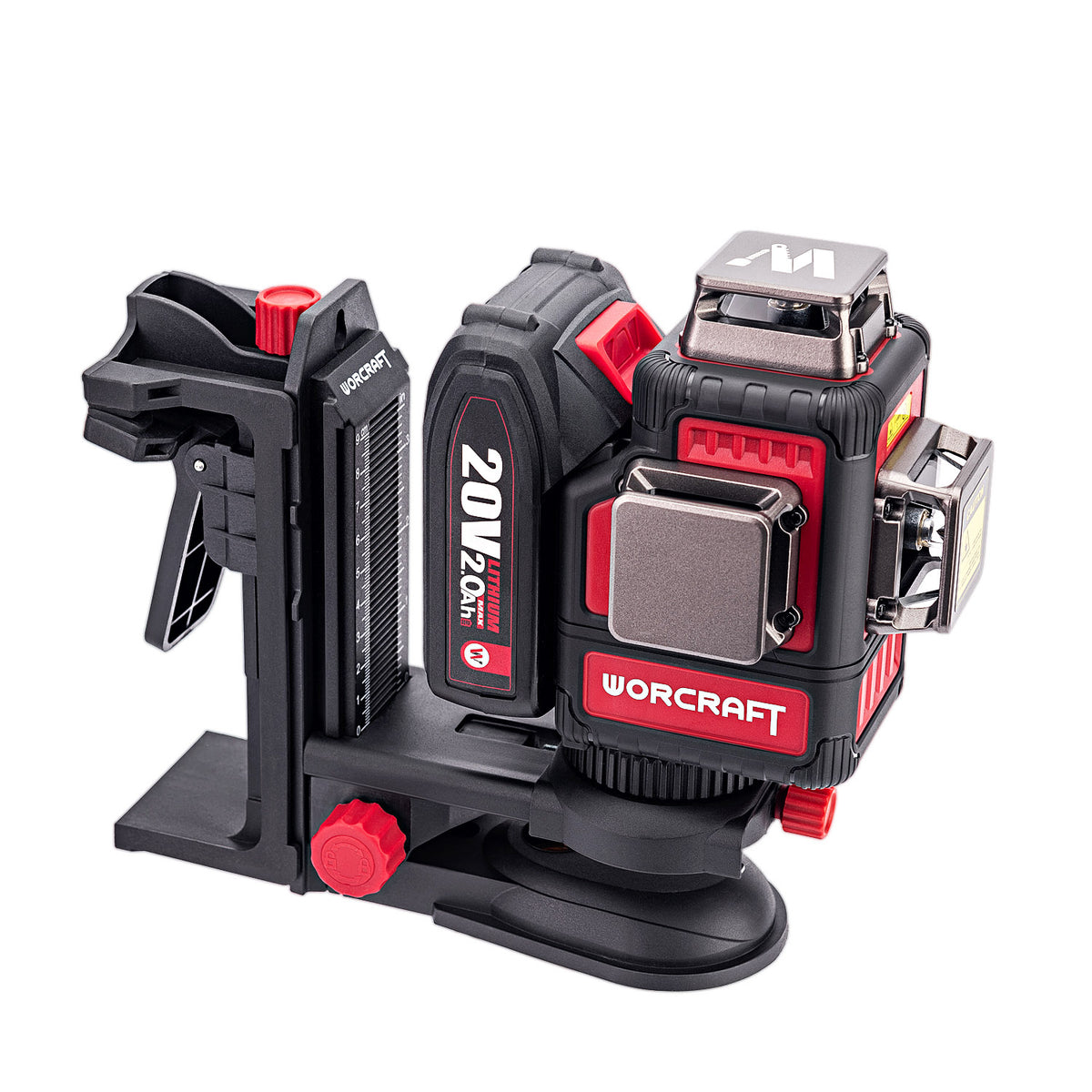

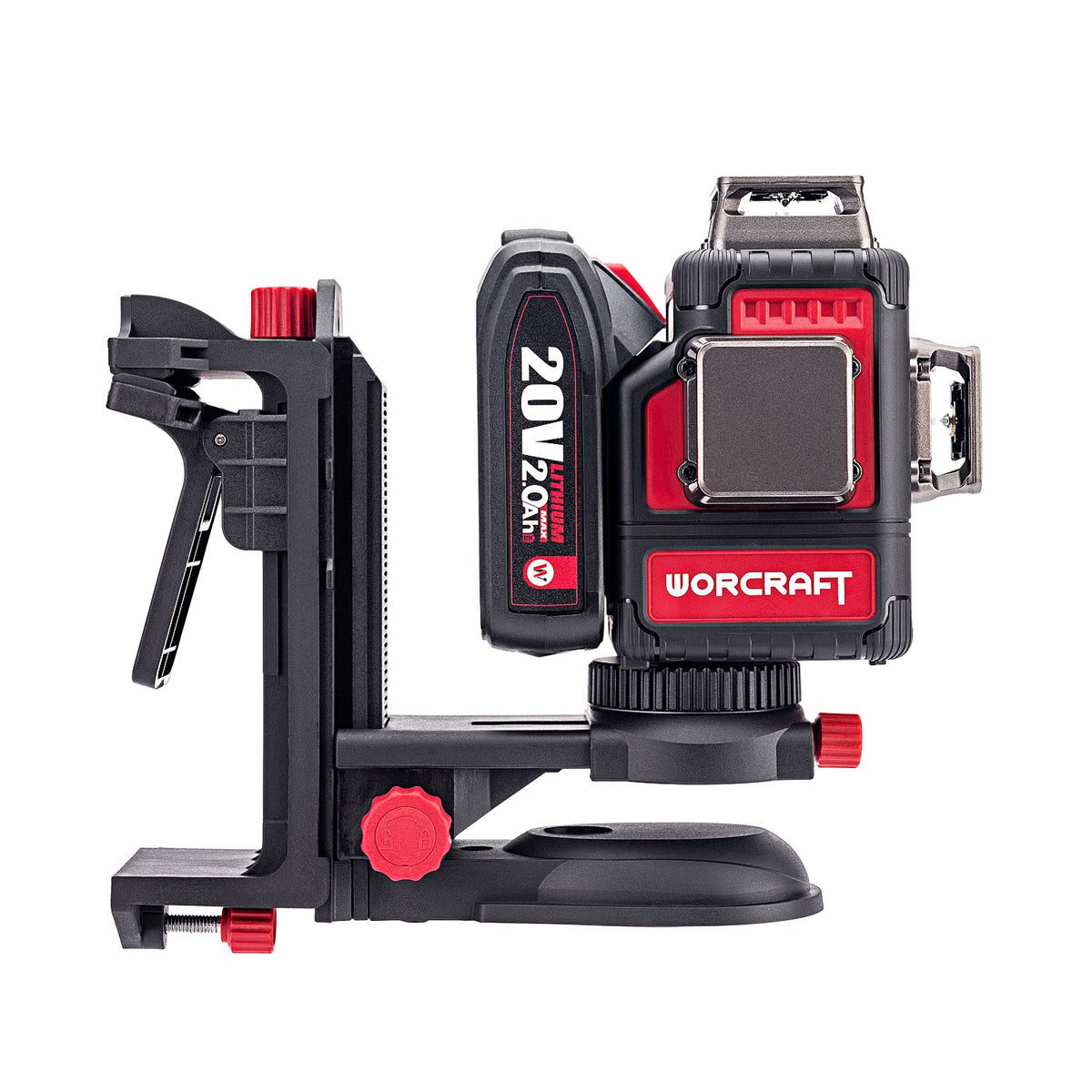

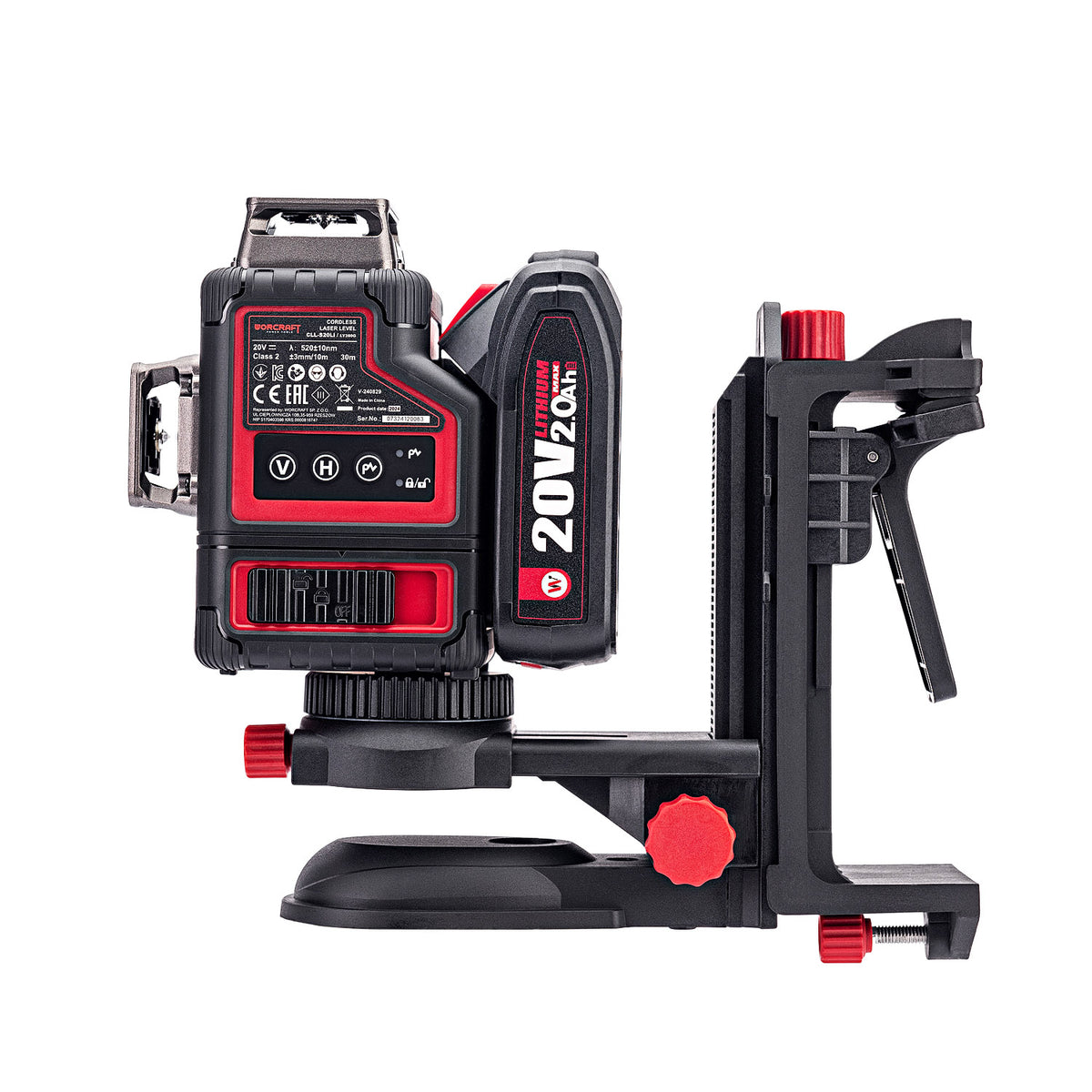

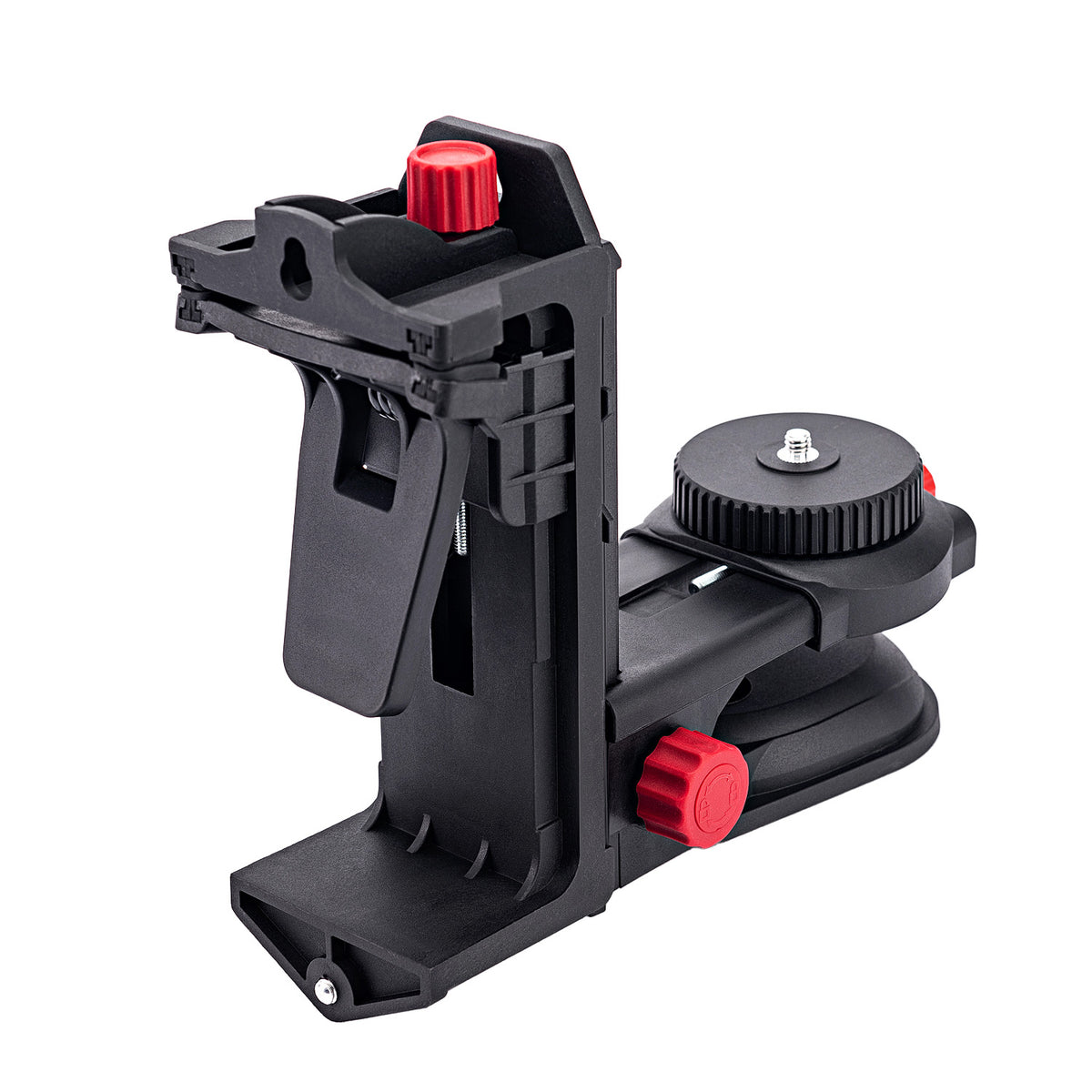

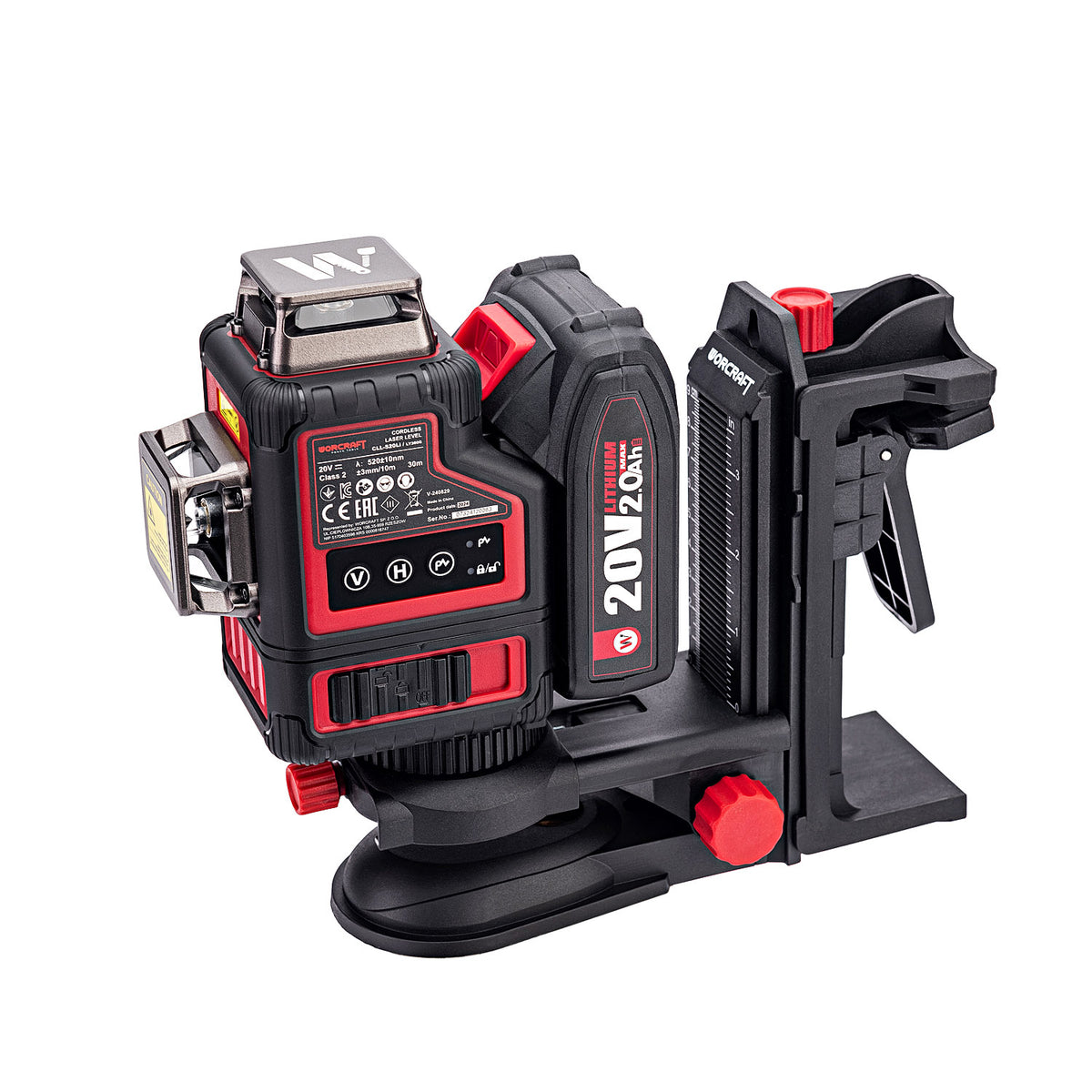

A multi-axis adjustable clamp with a magnetic metal mount attaches to brackets, tracks, and steel surfaces. Two tripod thread holes on the base (1/4 in and 5/8 in) fit standard mounts, and the included heavy-duty magnetic bracket and metal-sheet clamp cover most jobsite setups out of the box.

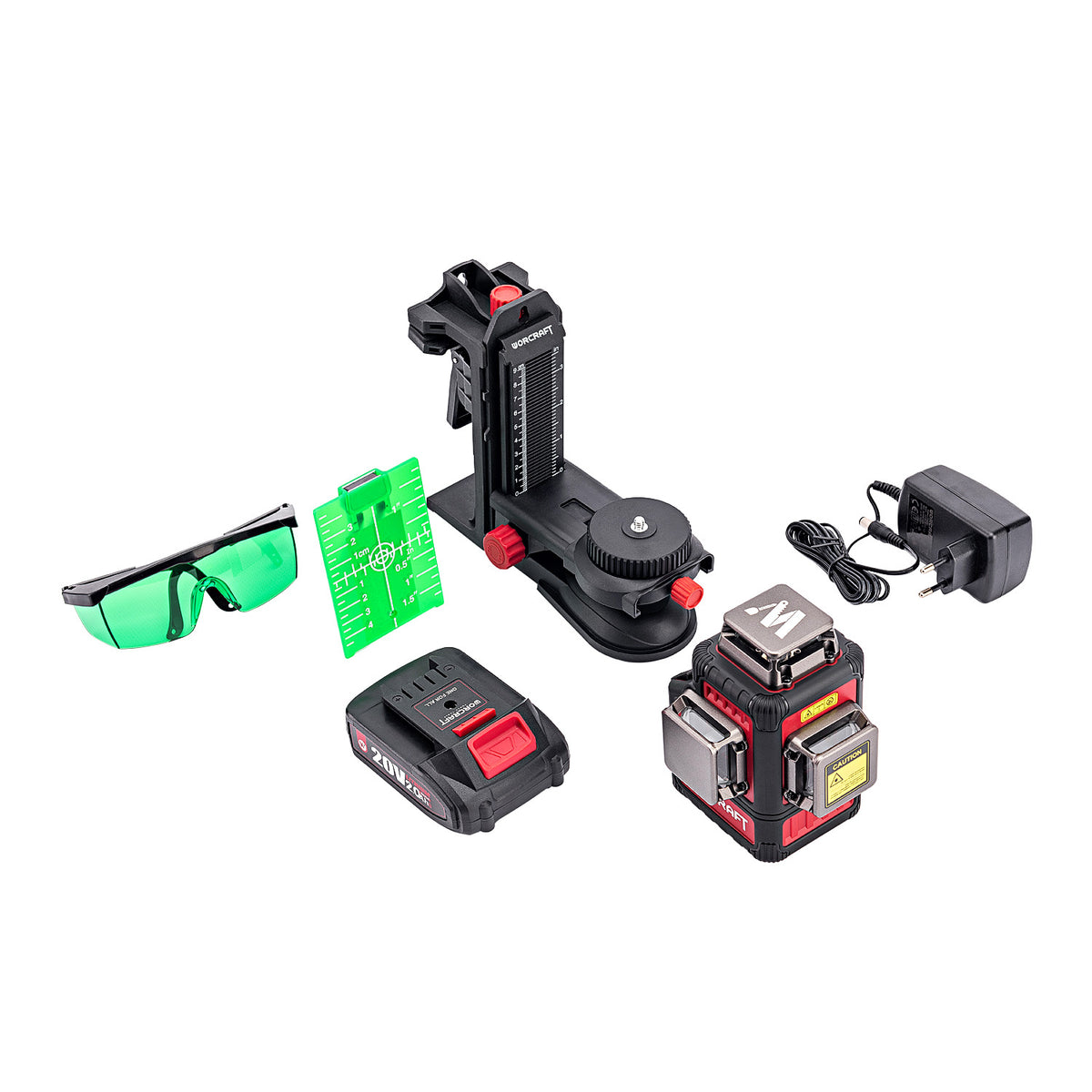

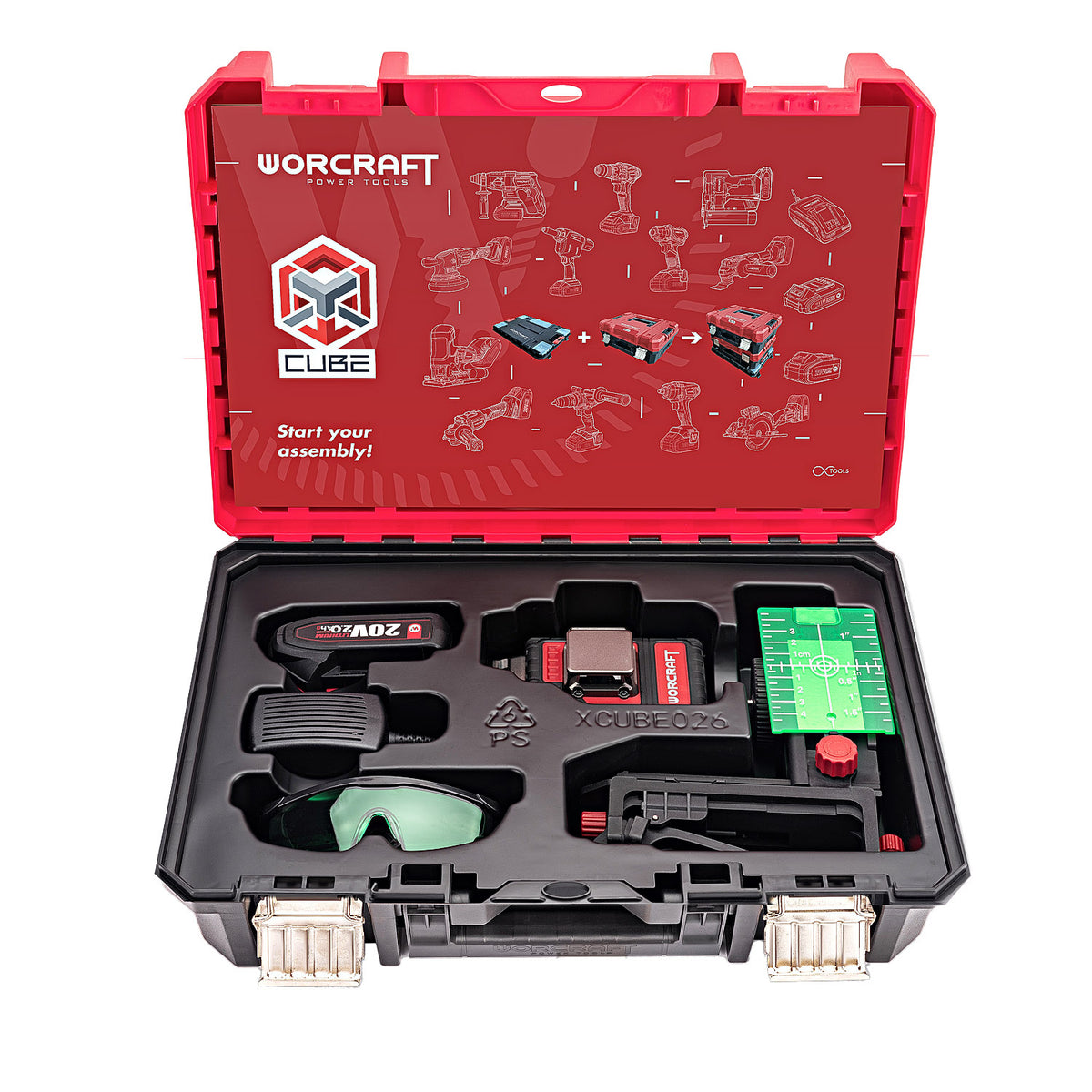

What’s in the Set

  • WorCraft 20V 12-Line Green Laser Level

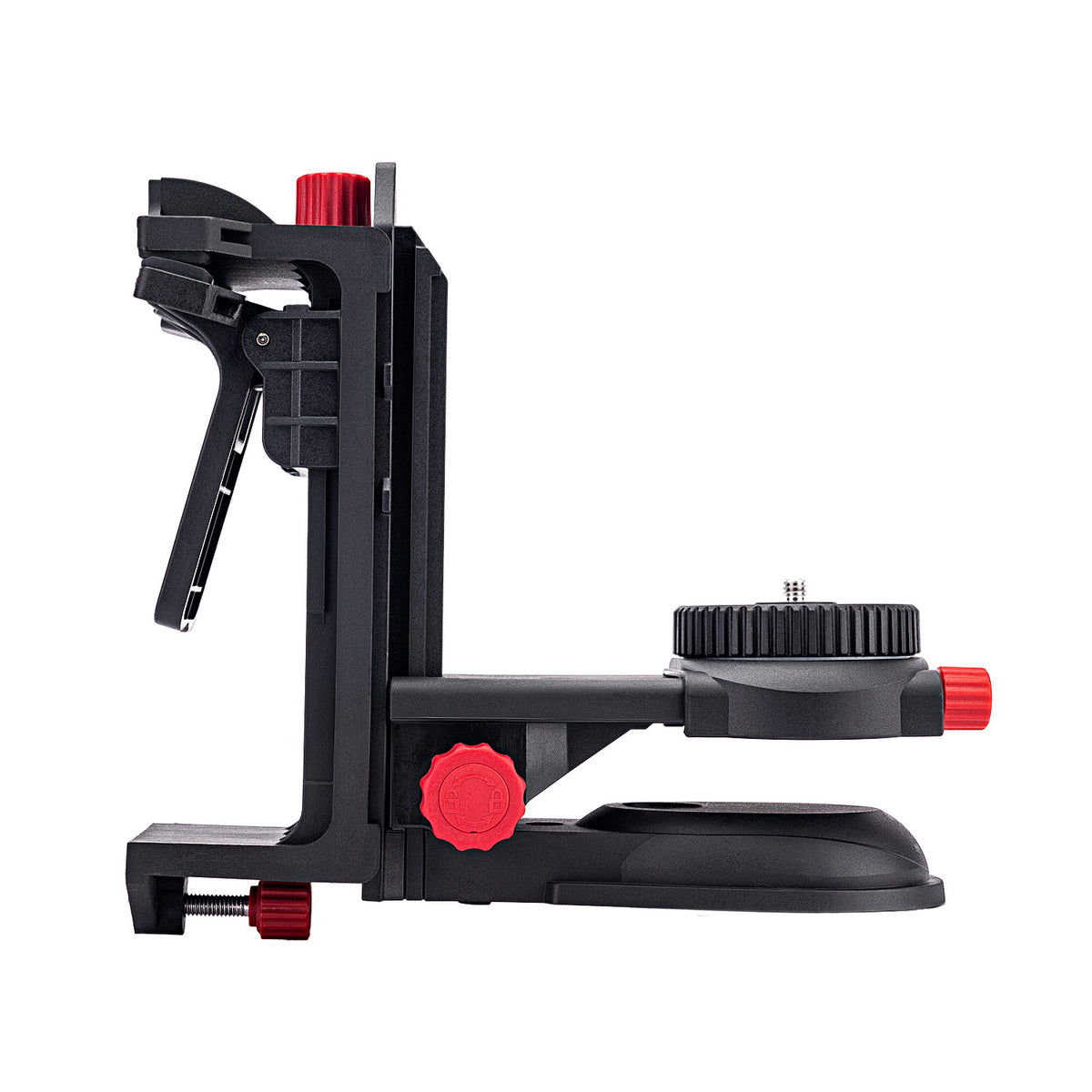

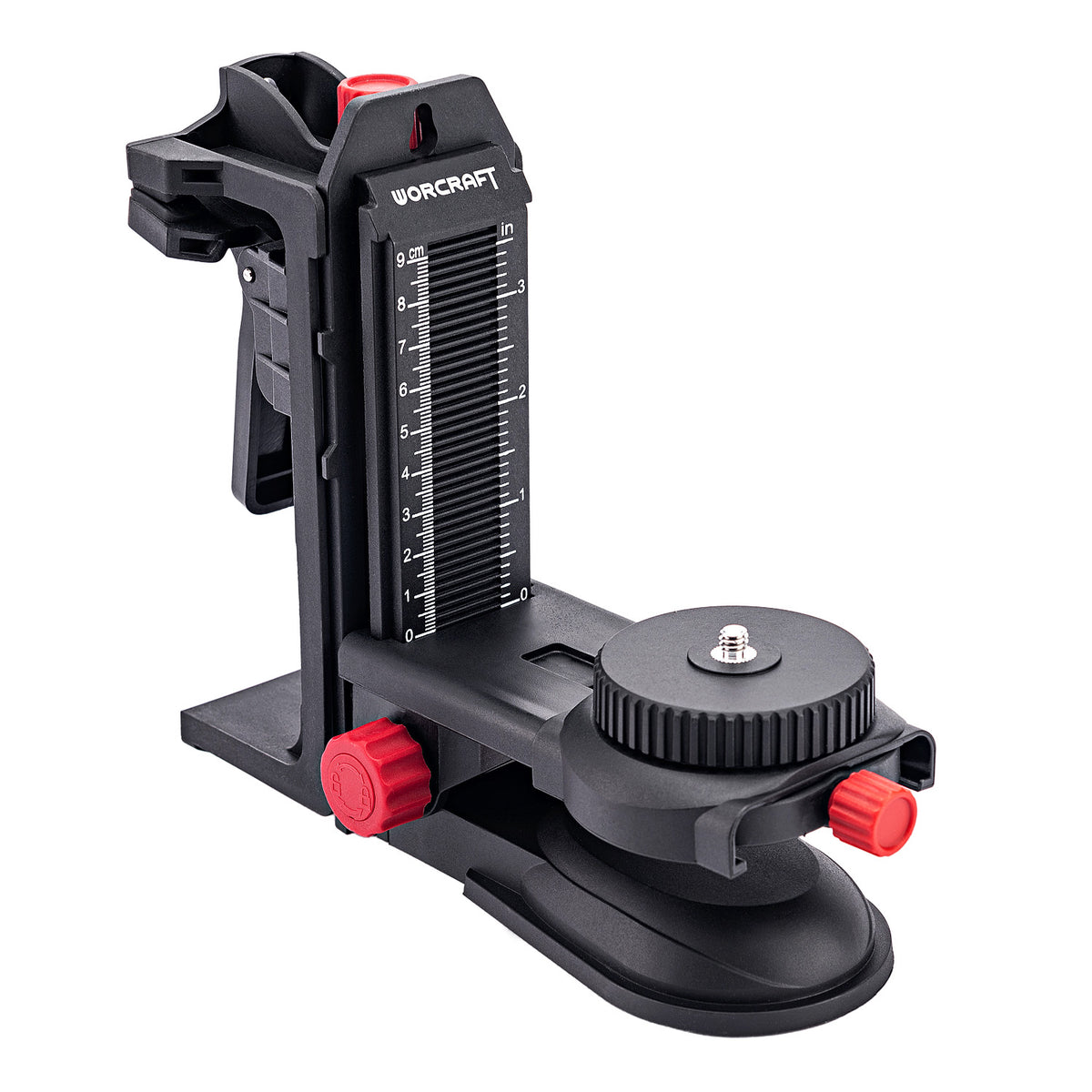

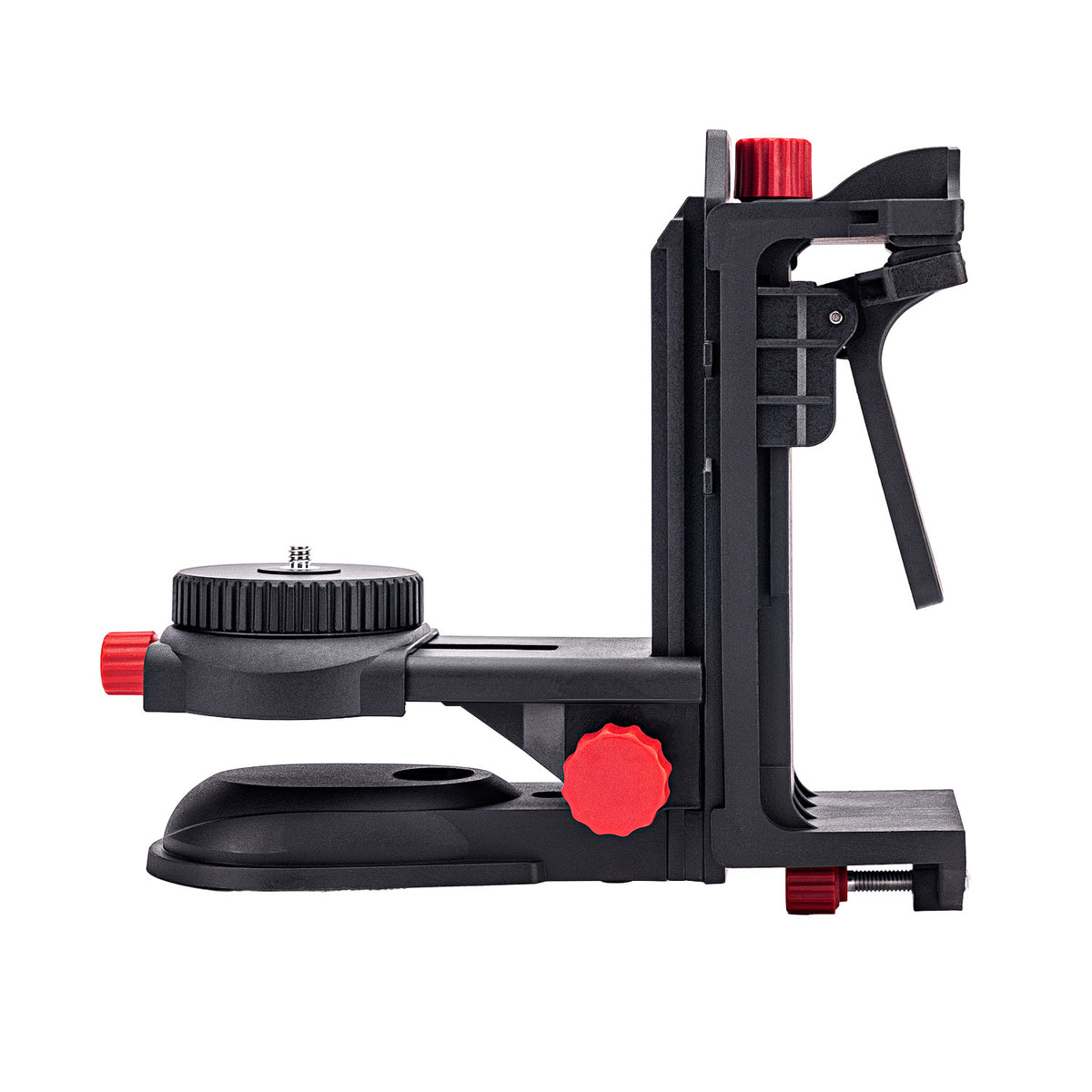

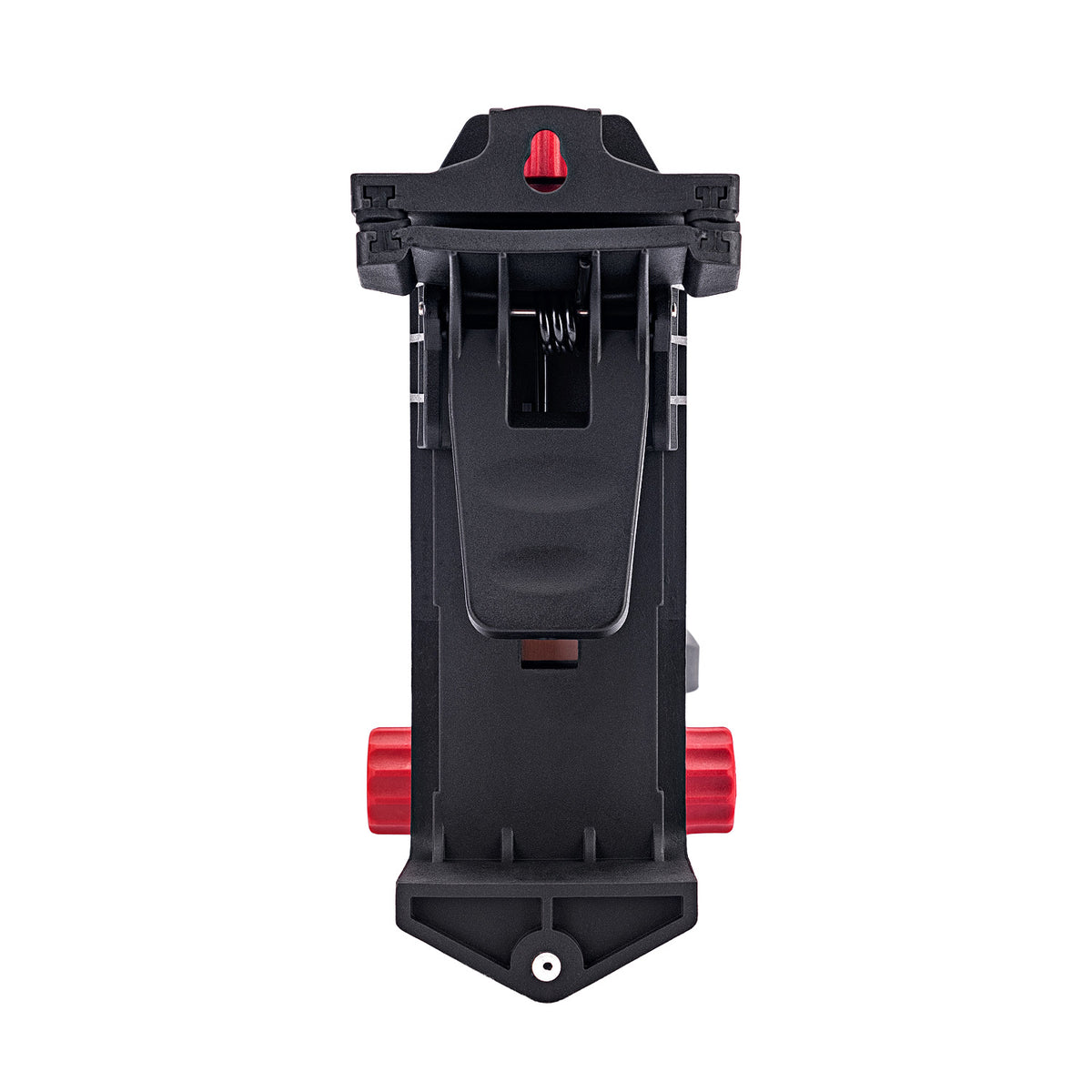

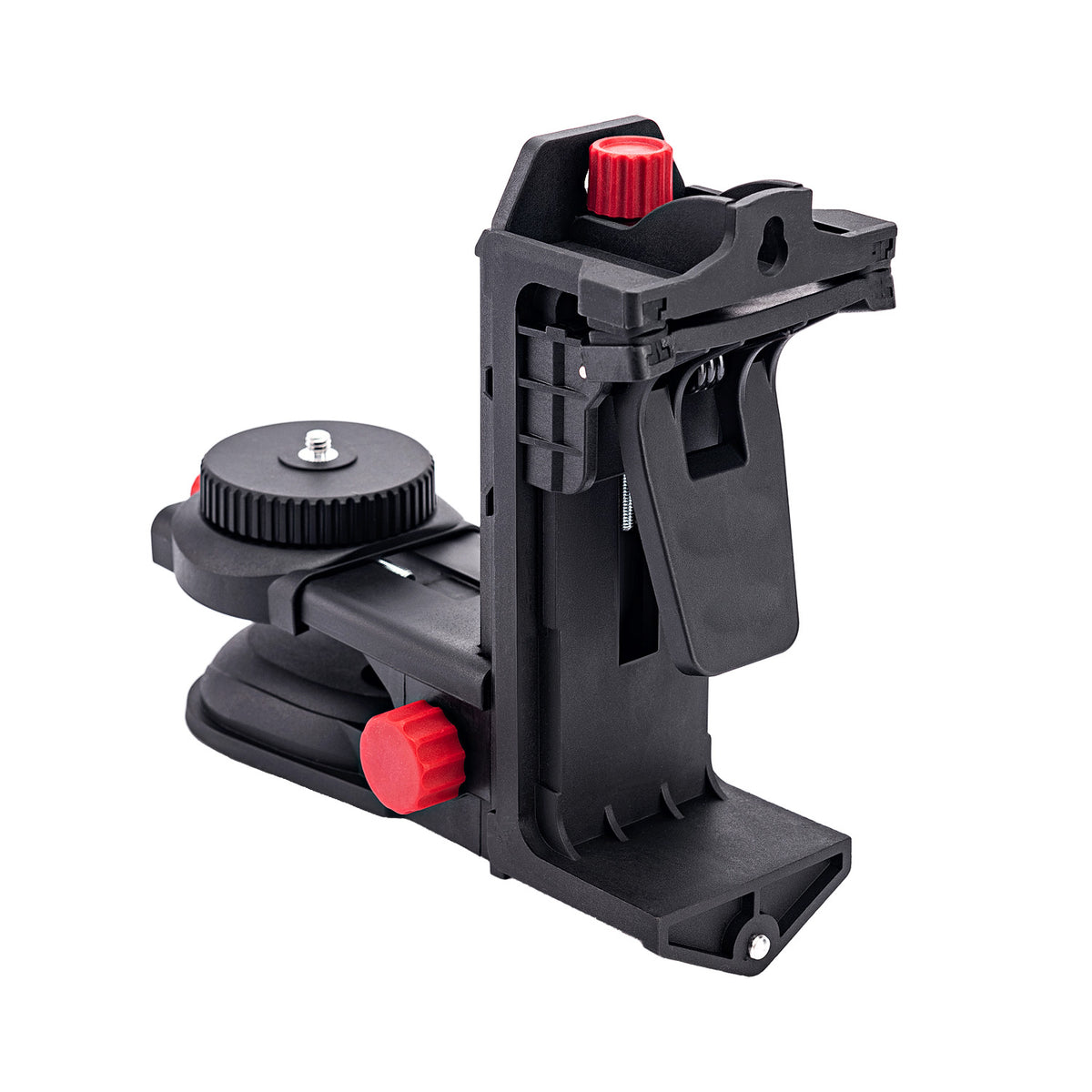

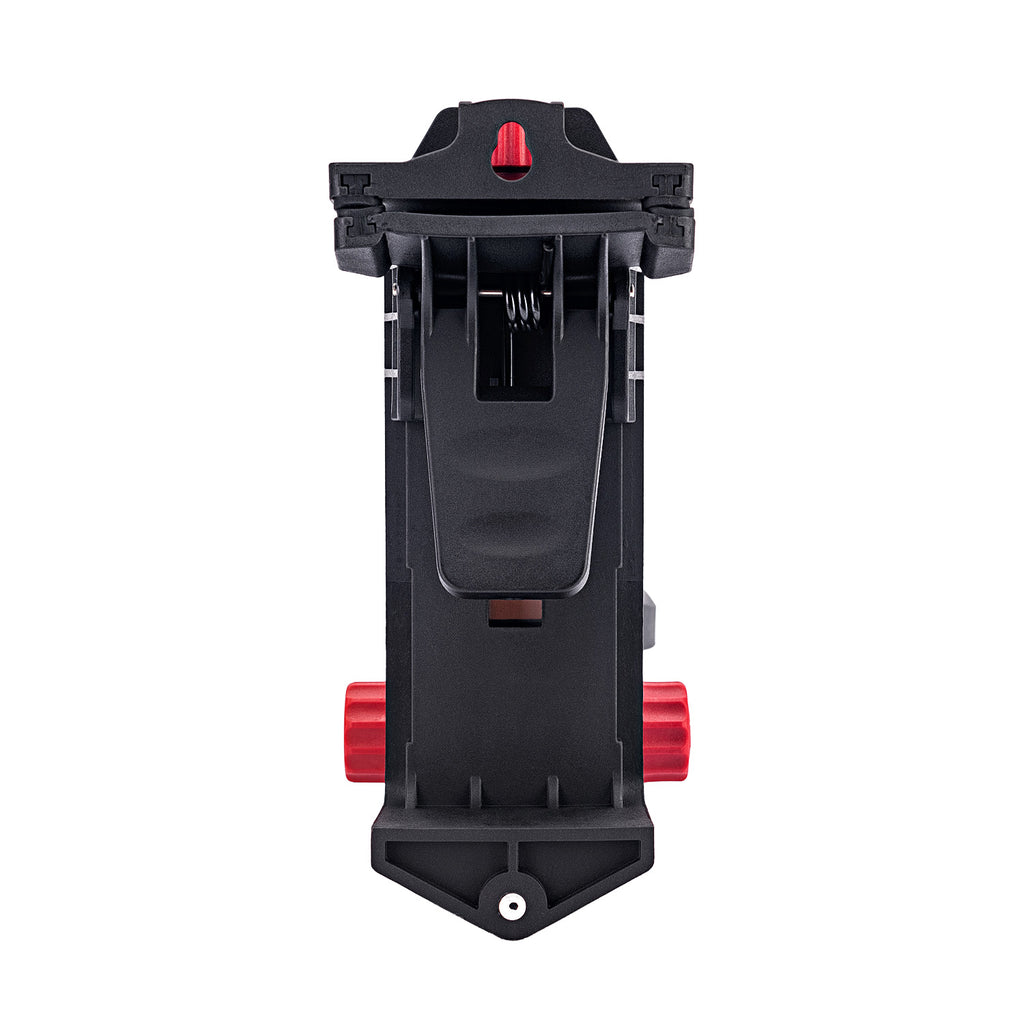

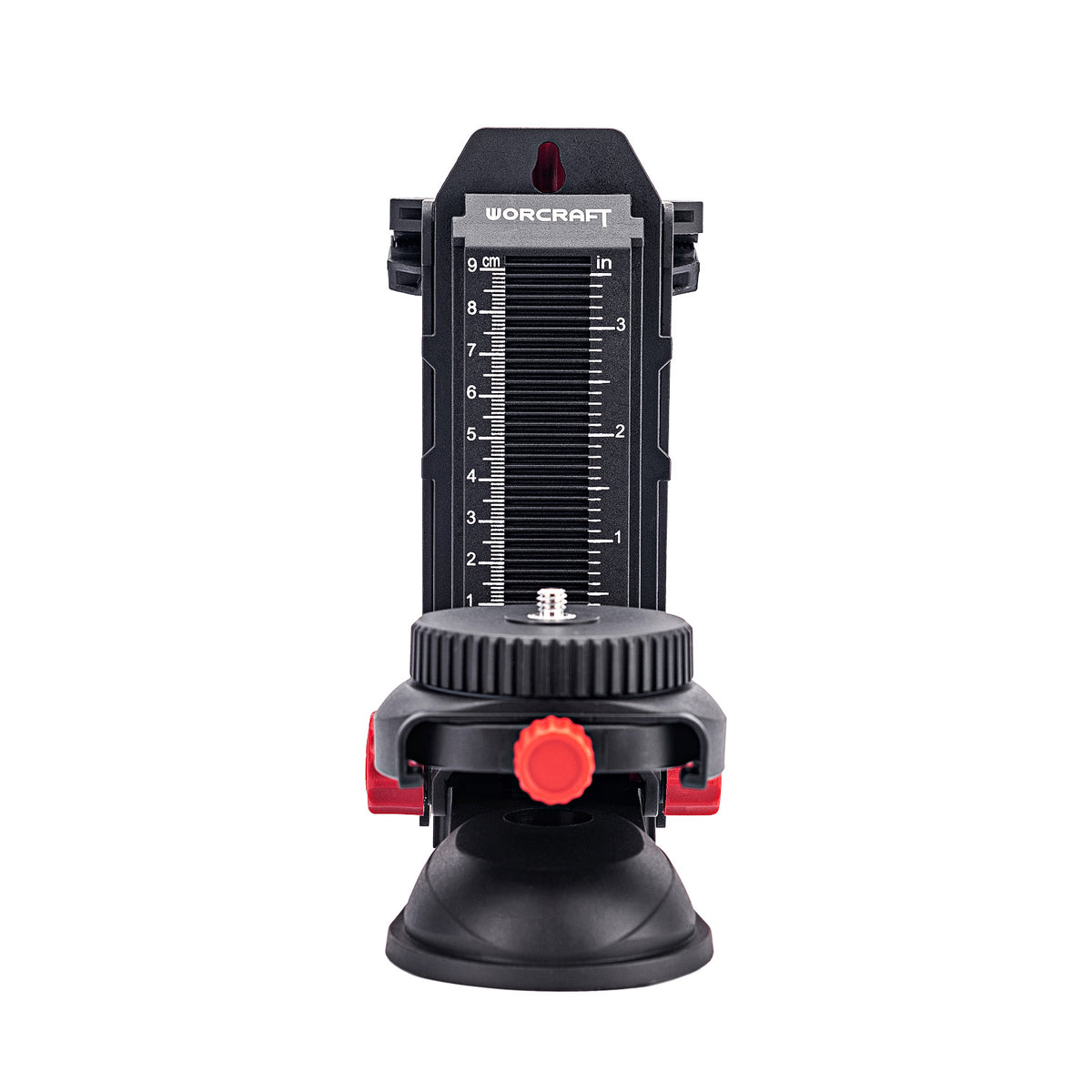

  • Heavy-duty magnetic bracket (PV14, 360° pivoting adjustable base)
  • Metal-sheet clamp (PV6+, adjustable depth)
  • Tripod

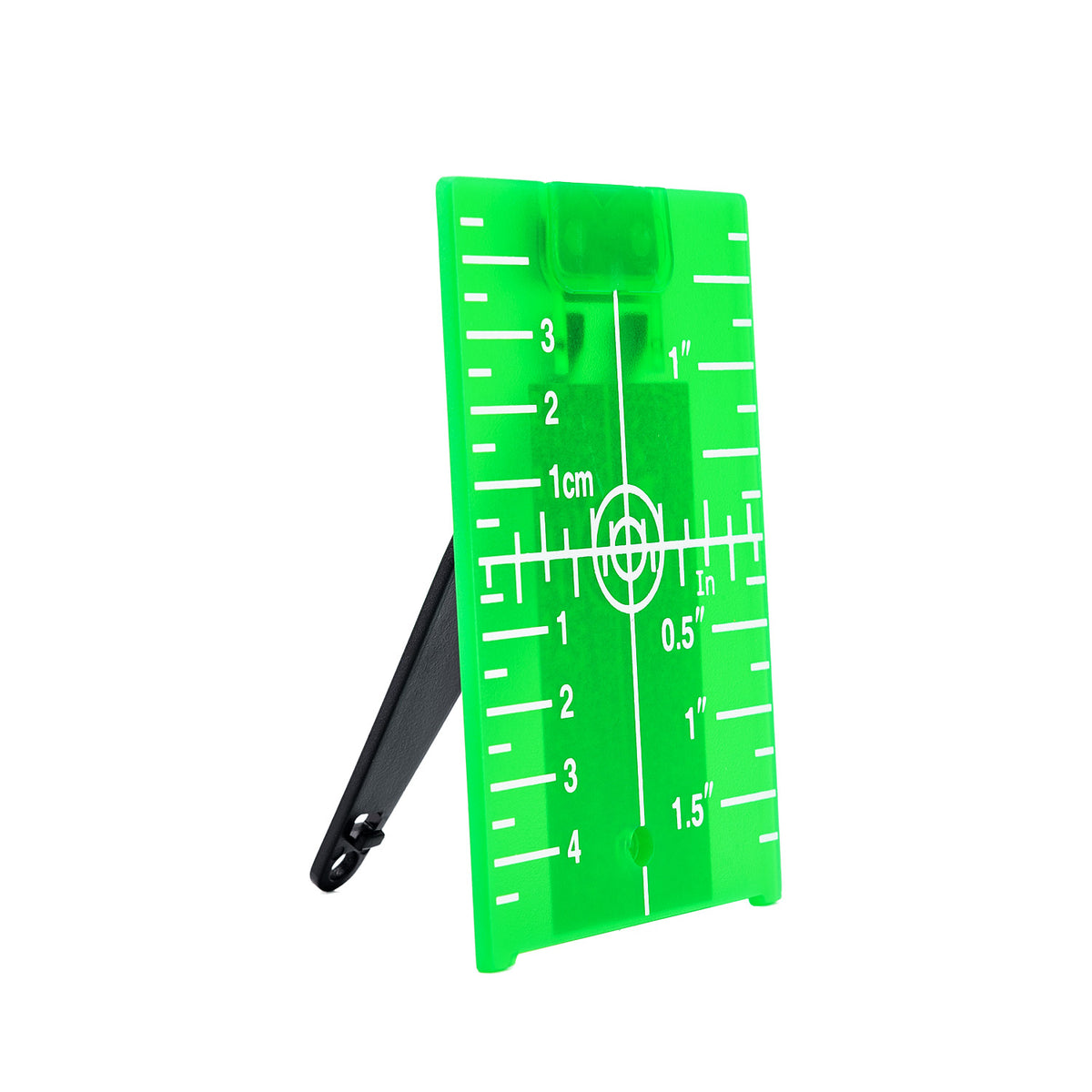

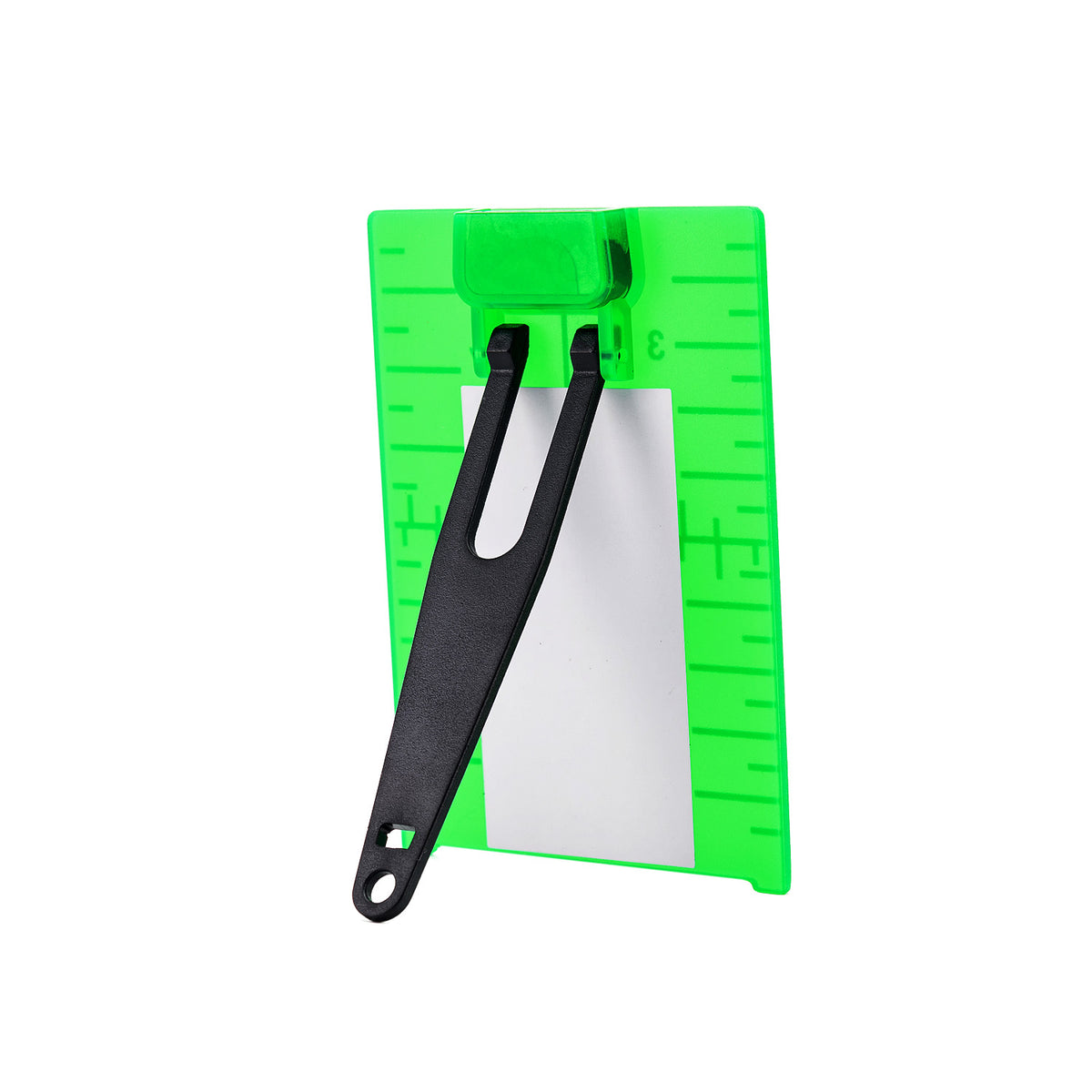

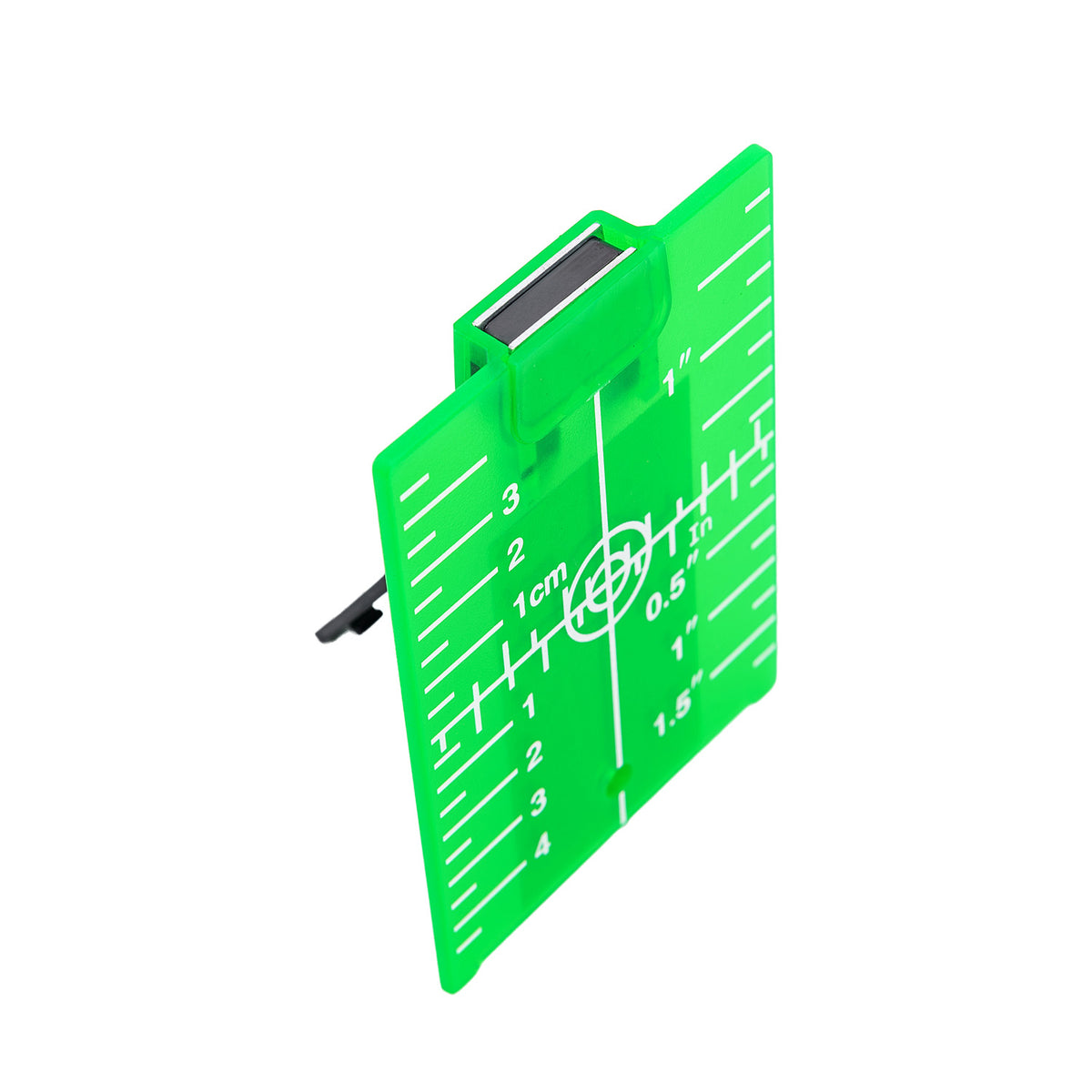

  • Magnetic laser target

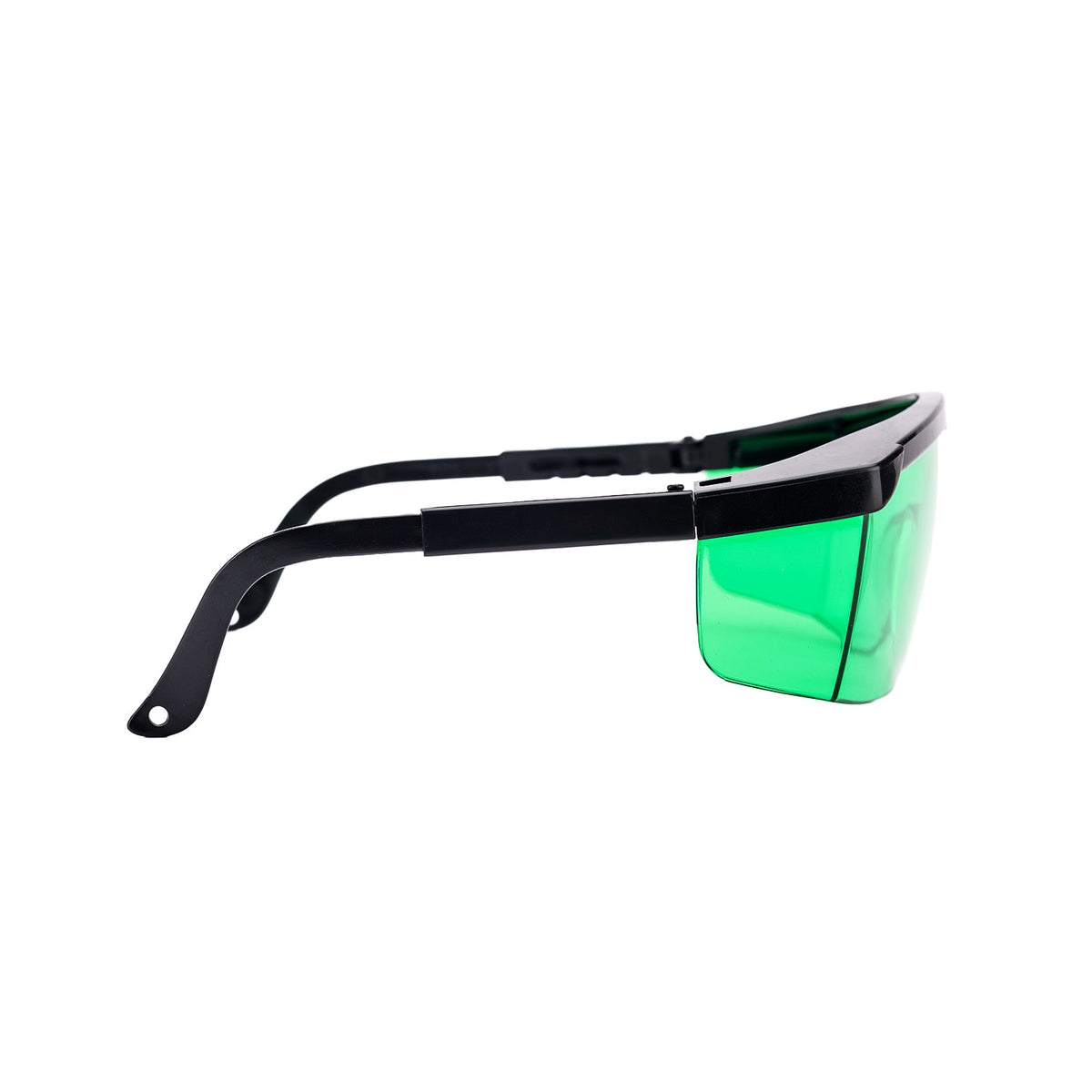

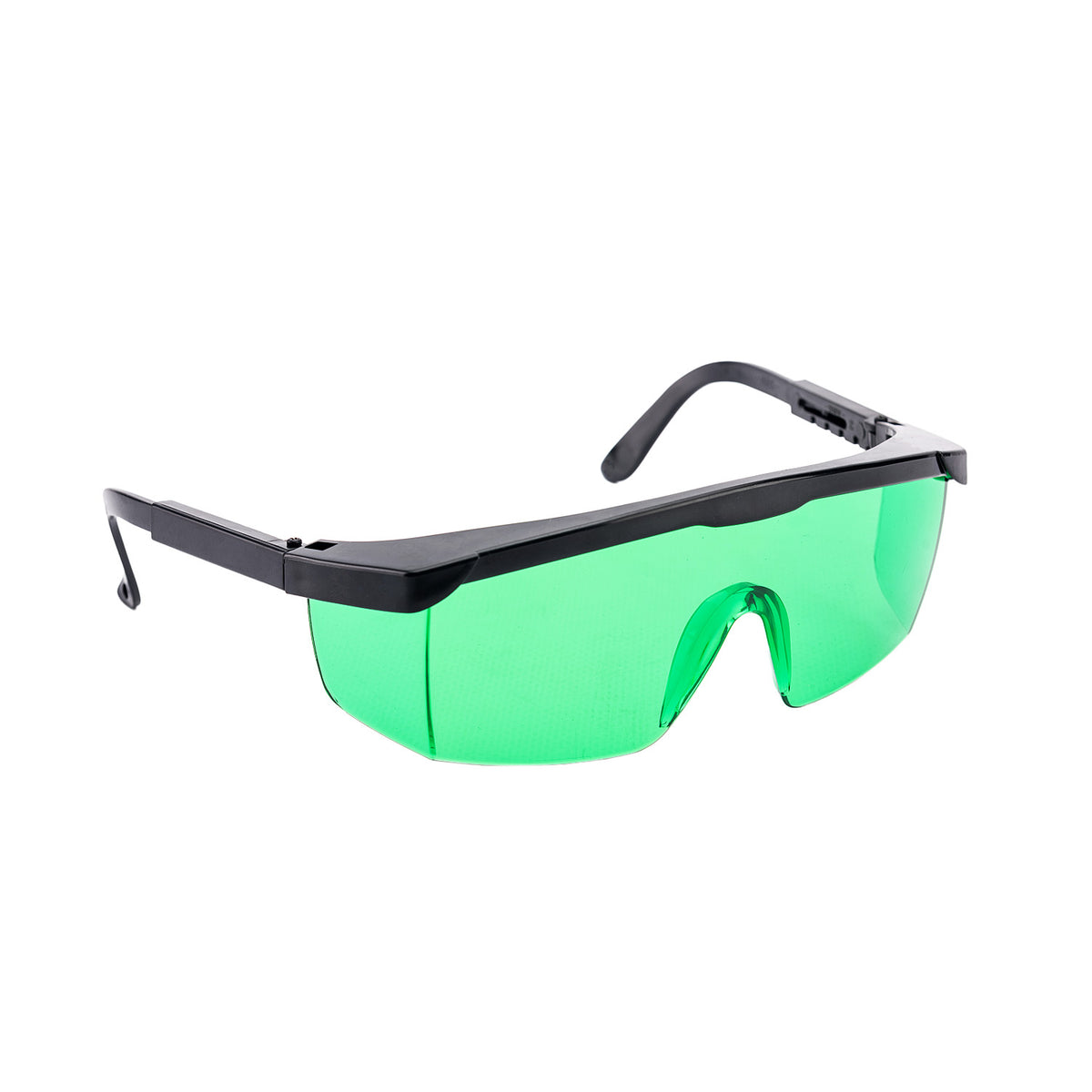

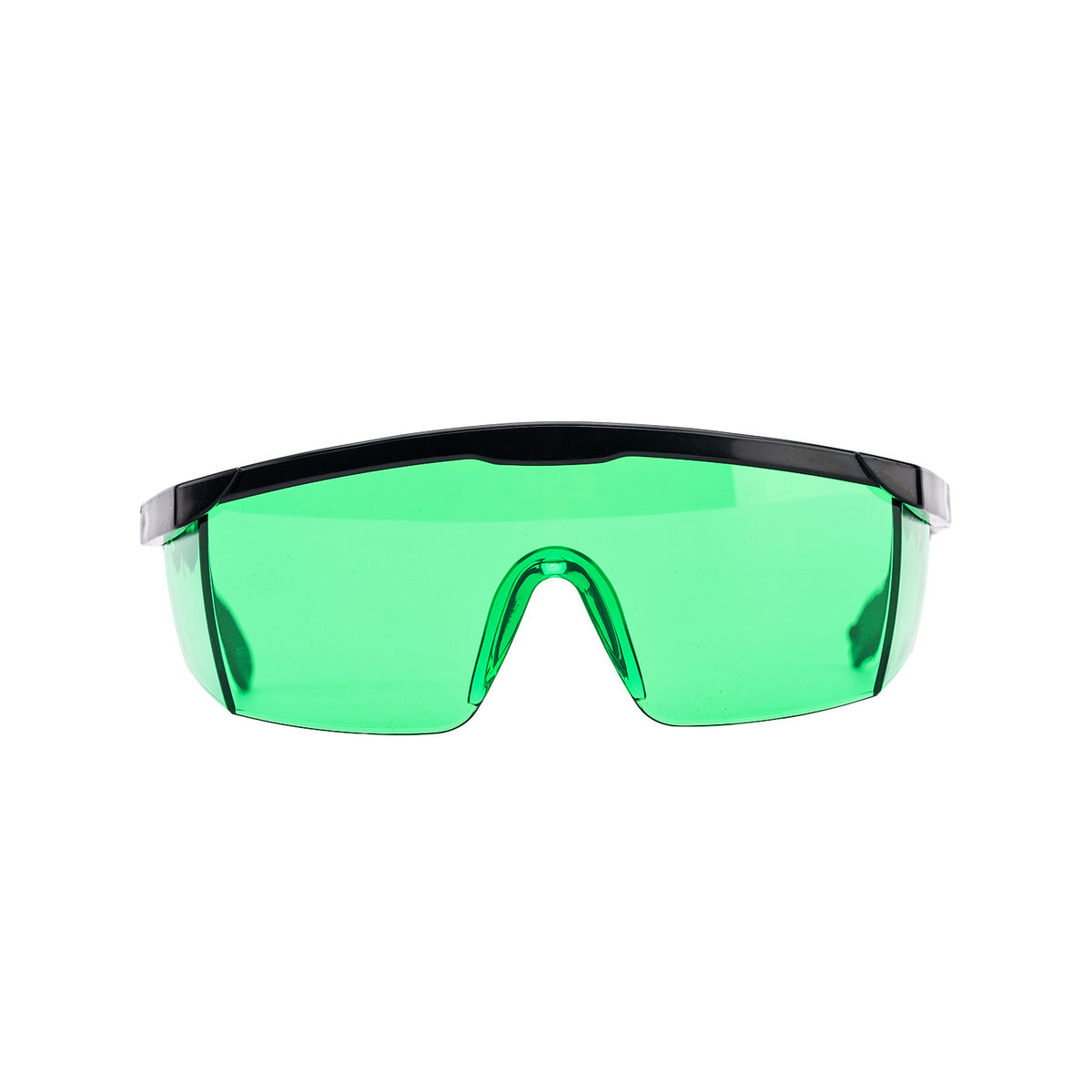

  • Green viewing glasses
  • Laser detector

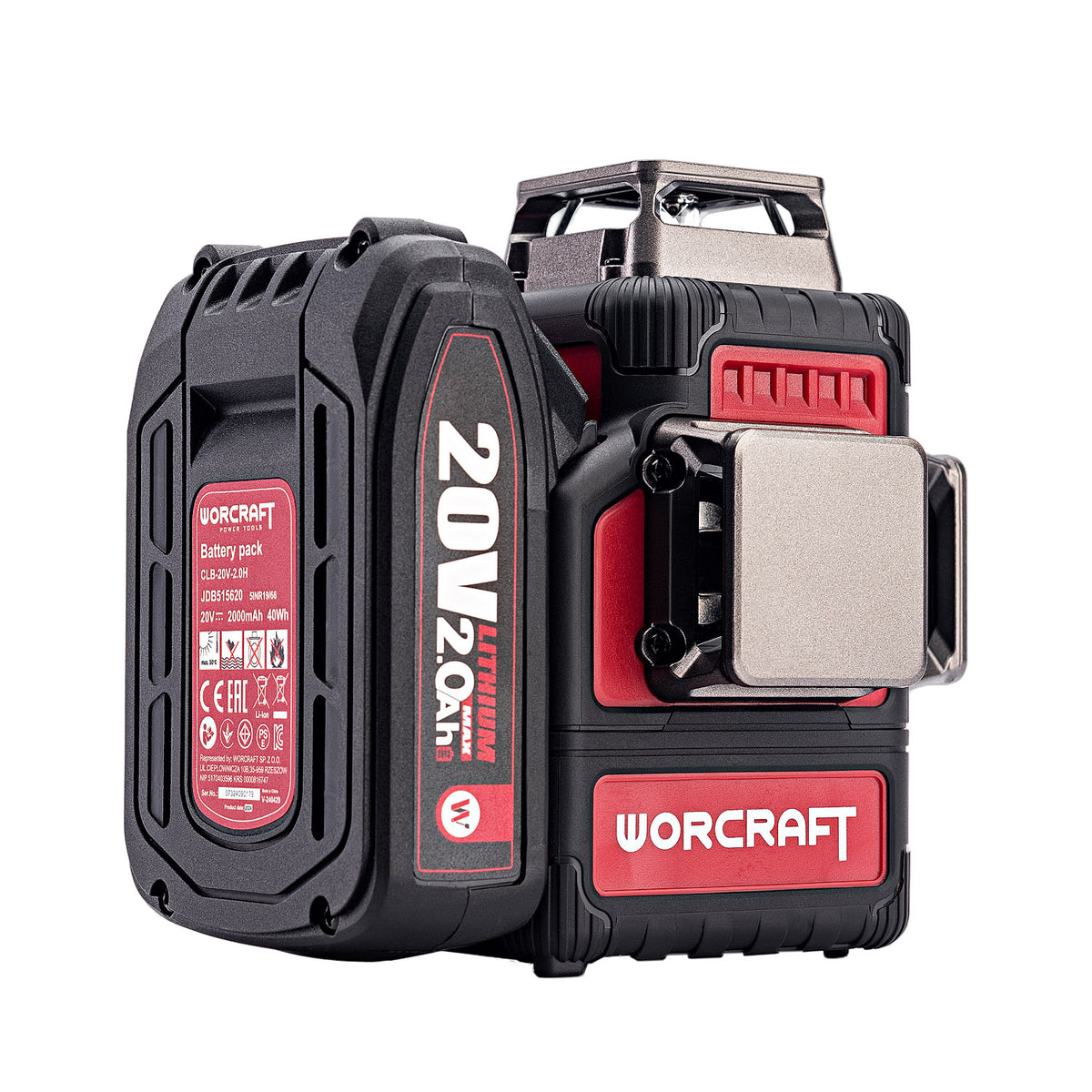

  • WorCraft 20V 2.0Ah ONE FOR ALL battery
  • 1.5A charger

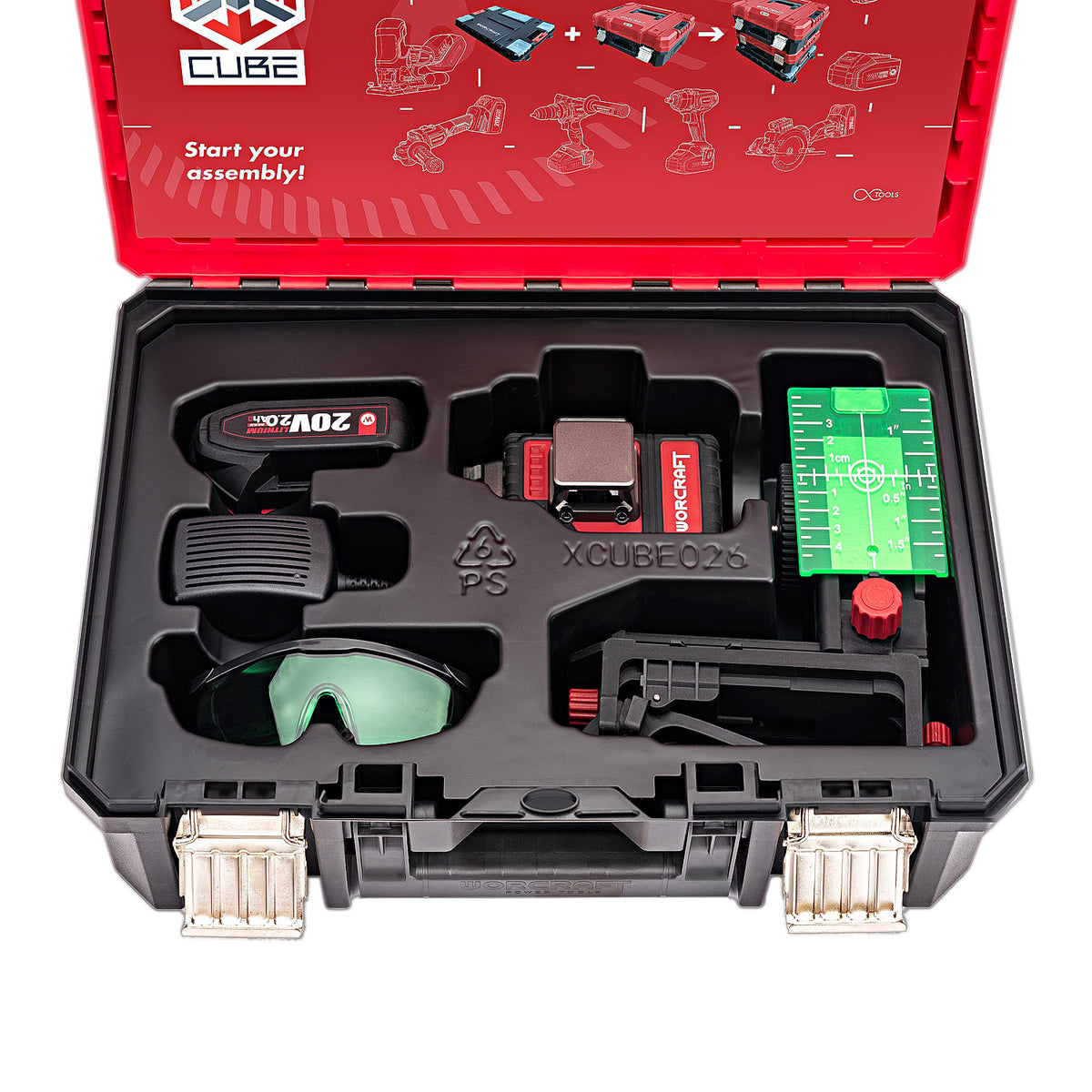

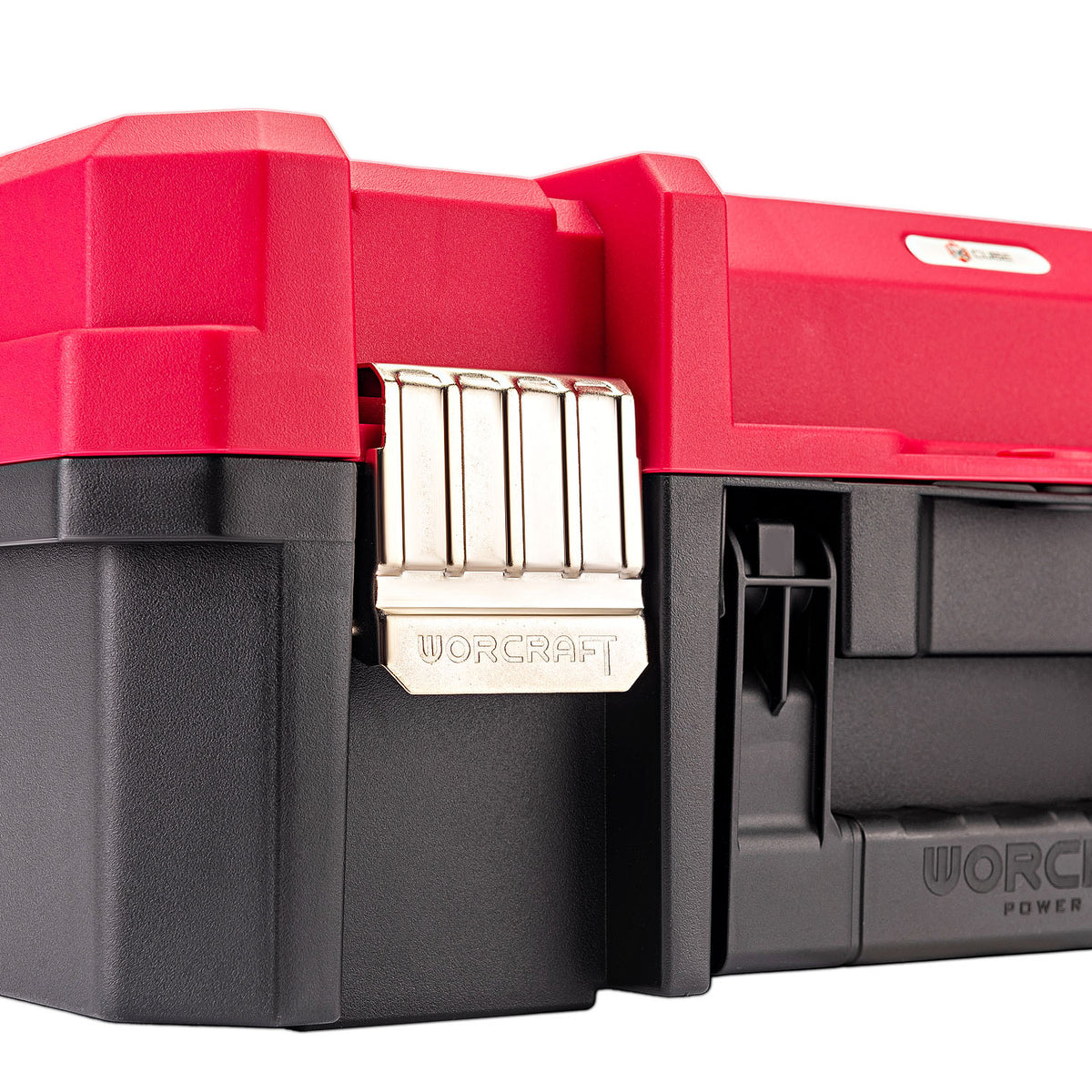

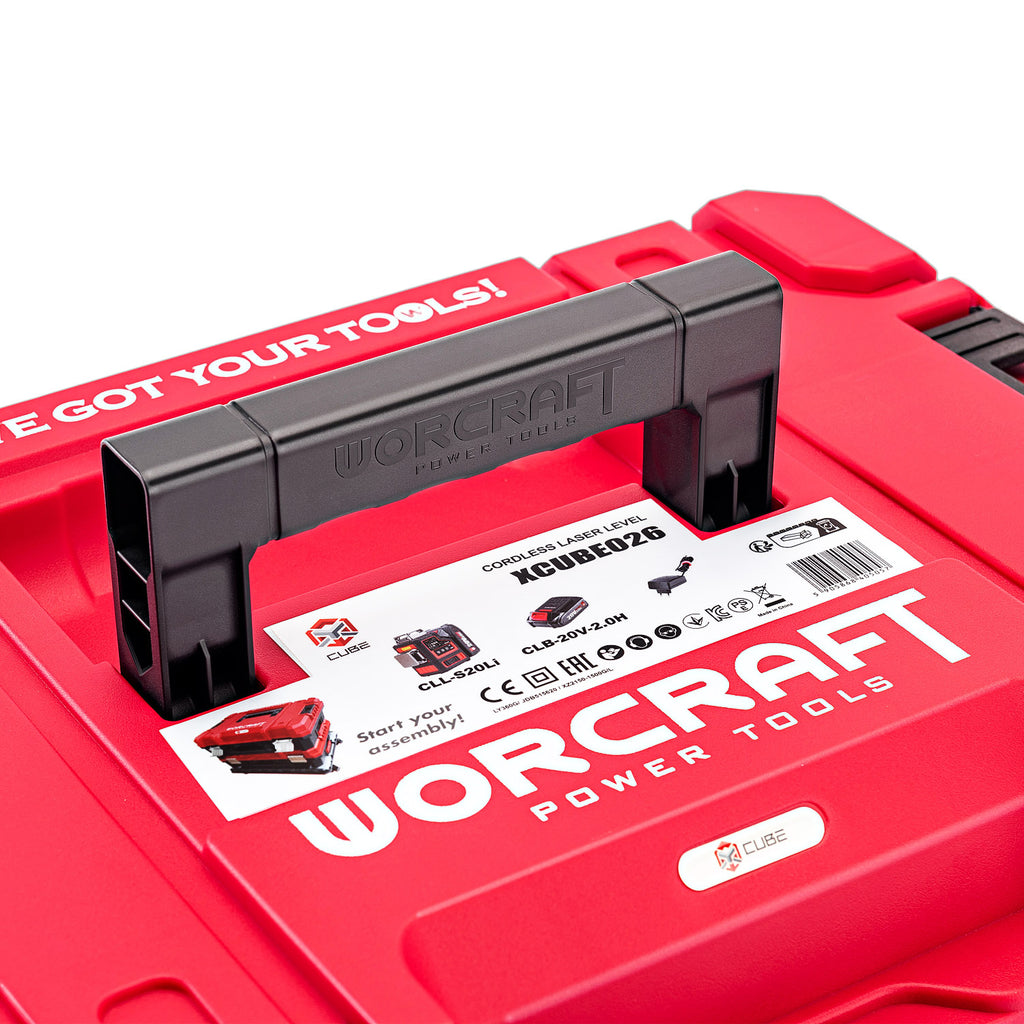

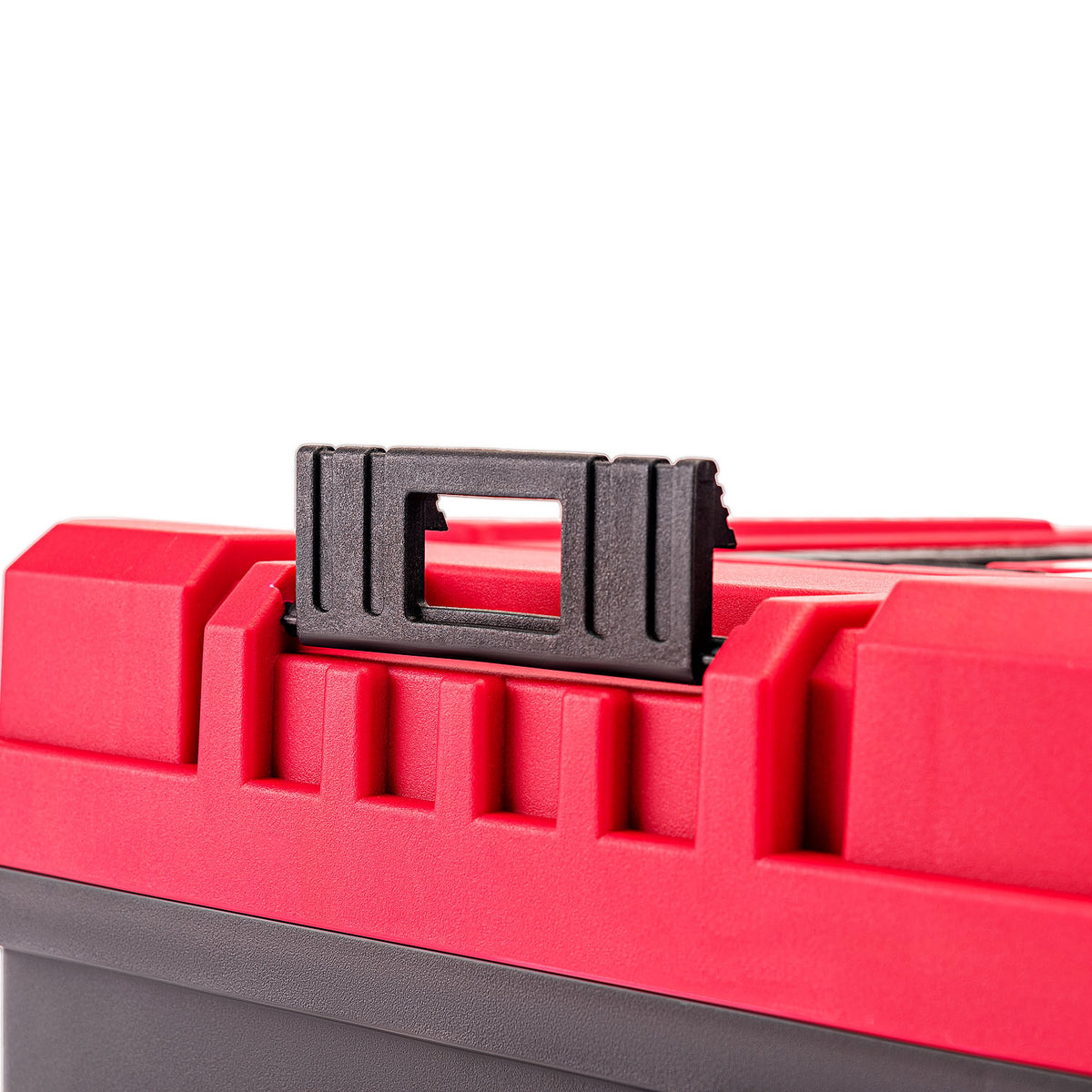

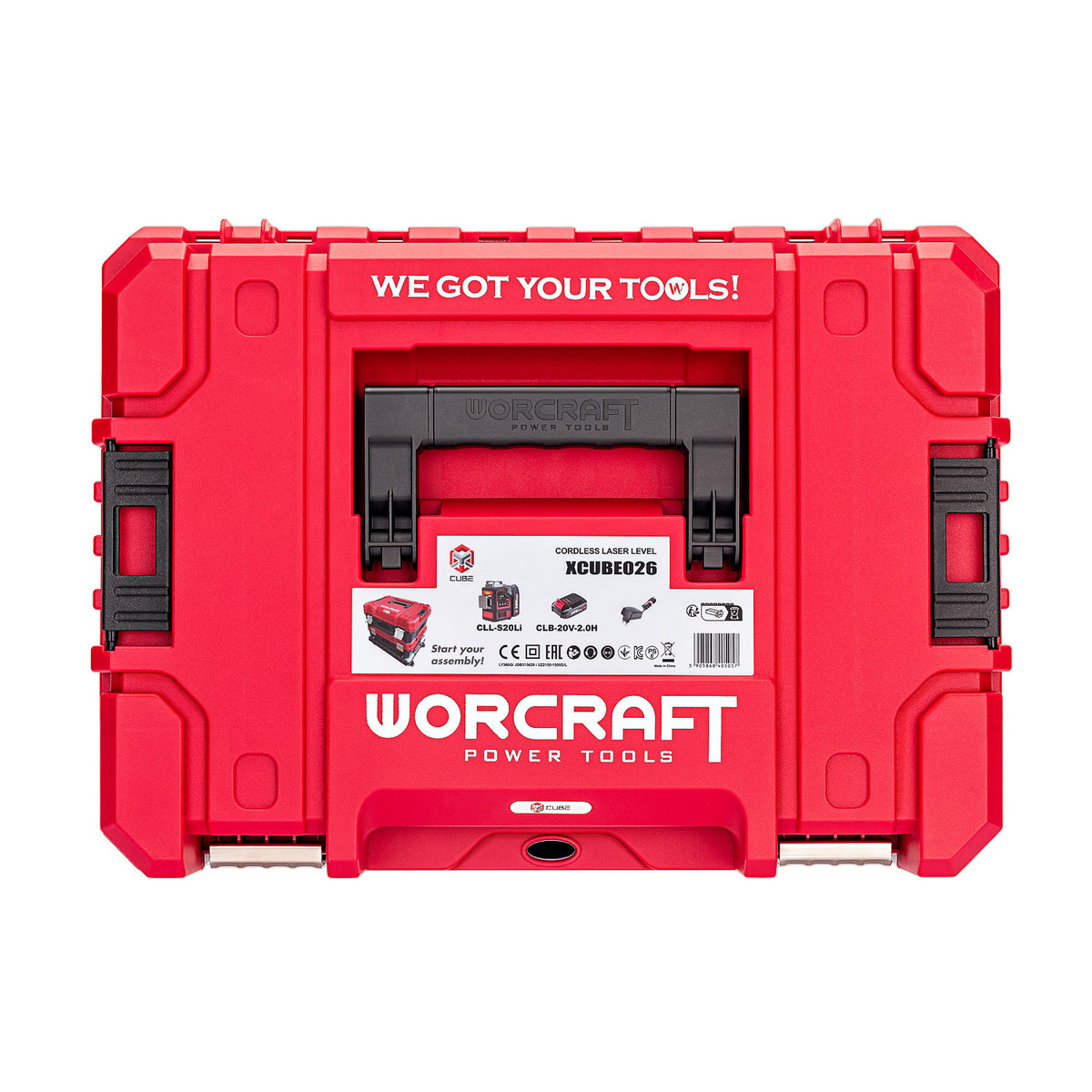

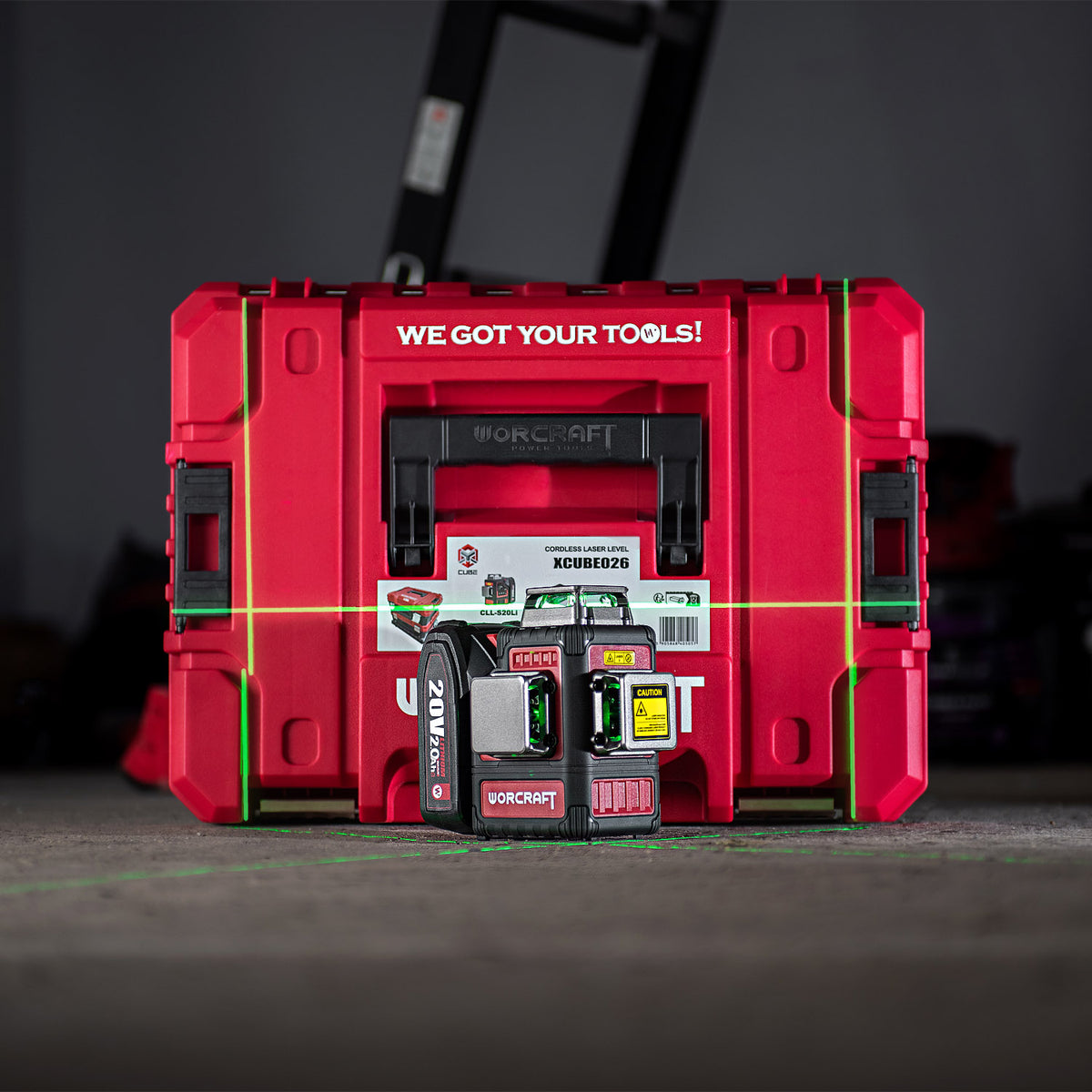

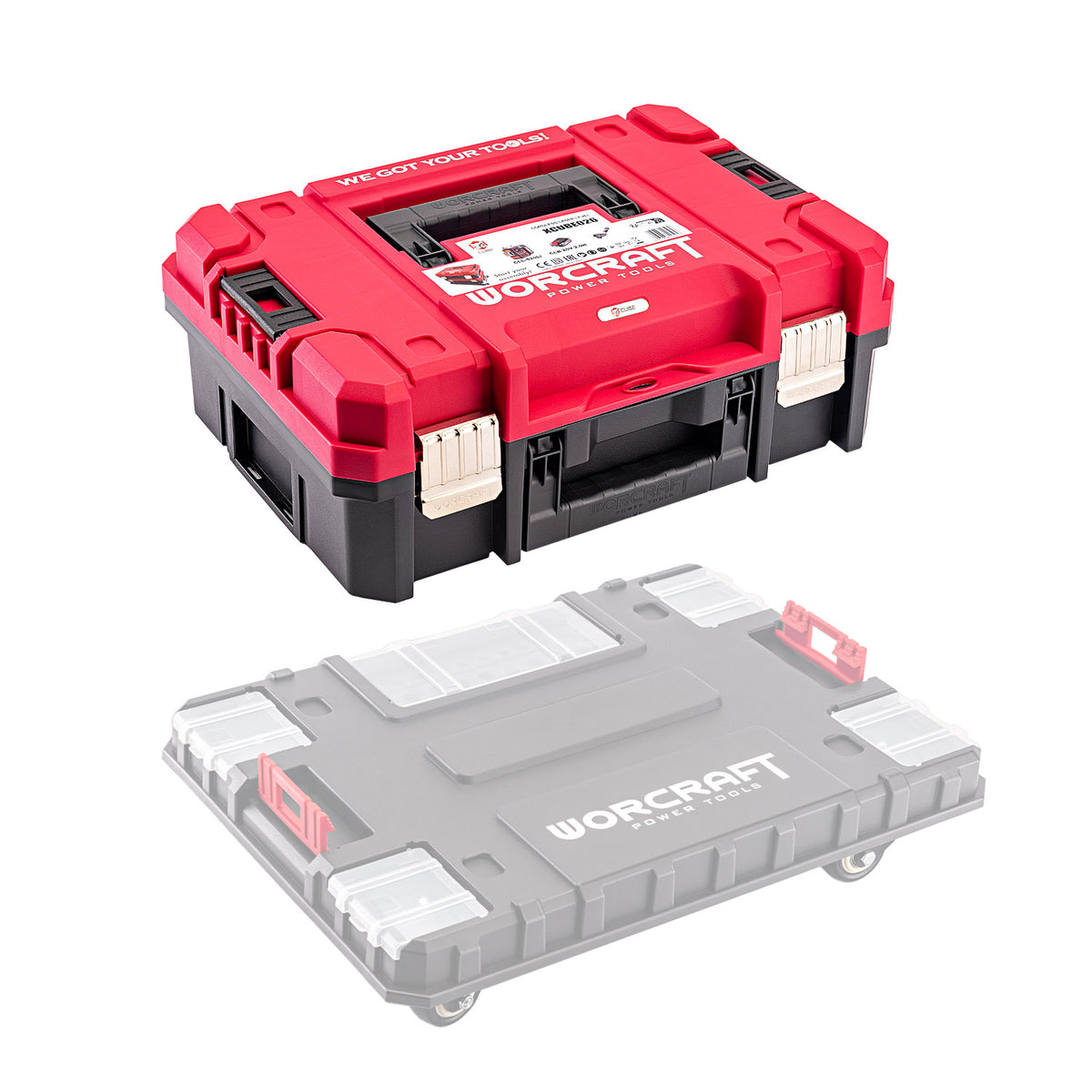

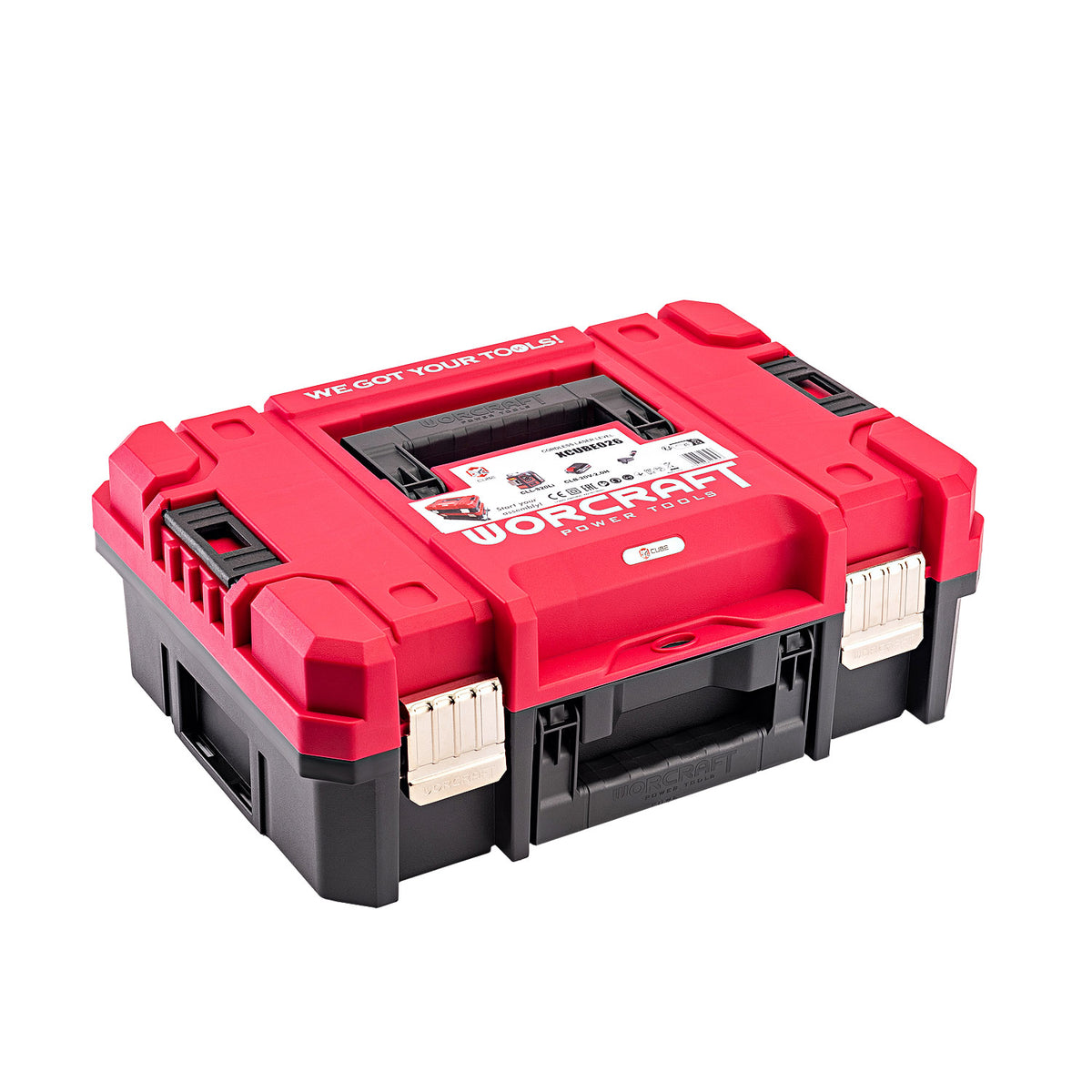

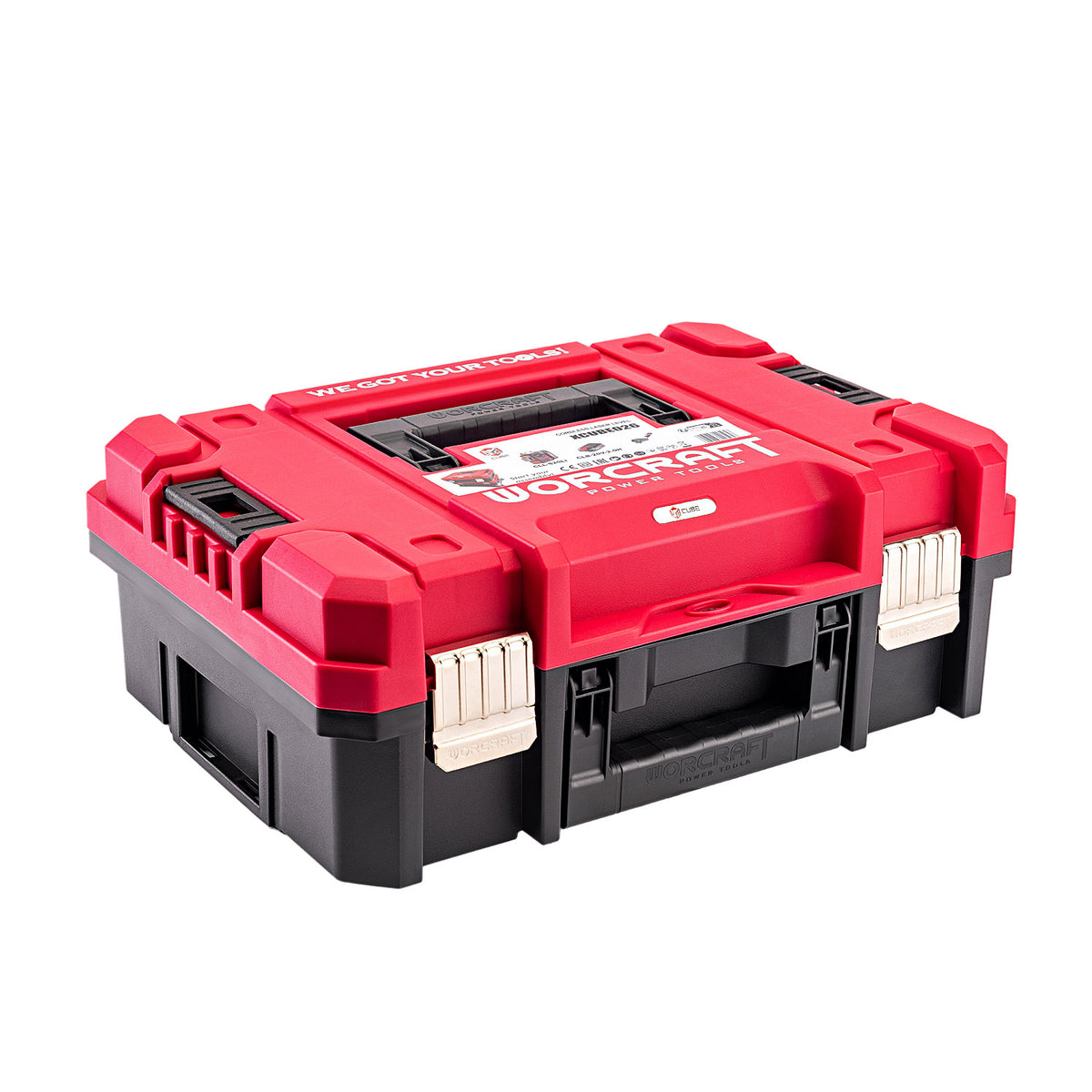

  • Stackable XCUBE case
  • Instruction manual

Specifications

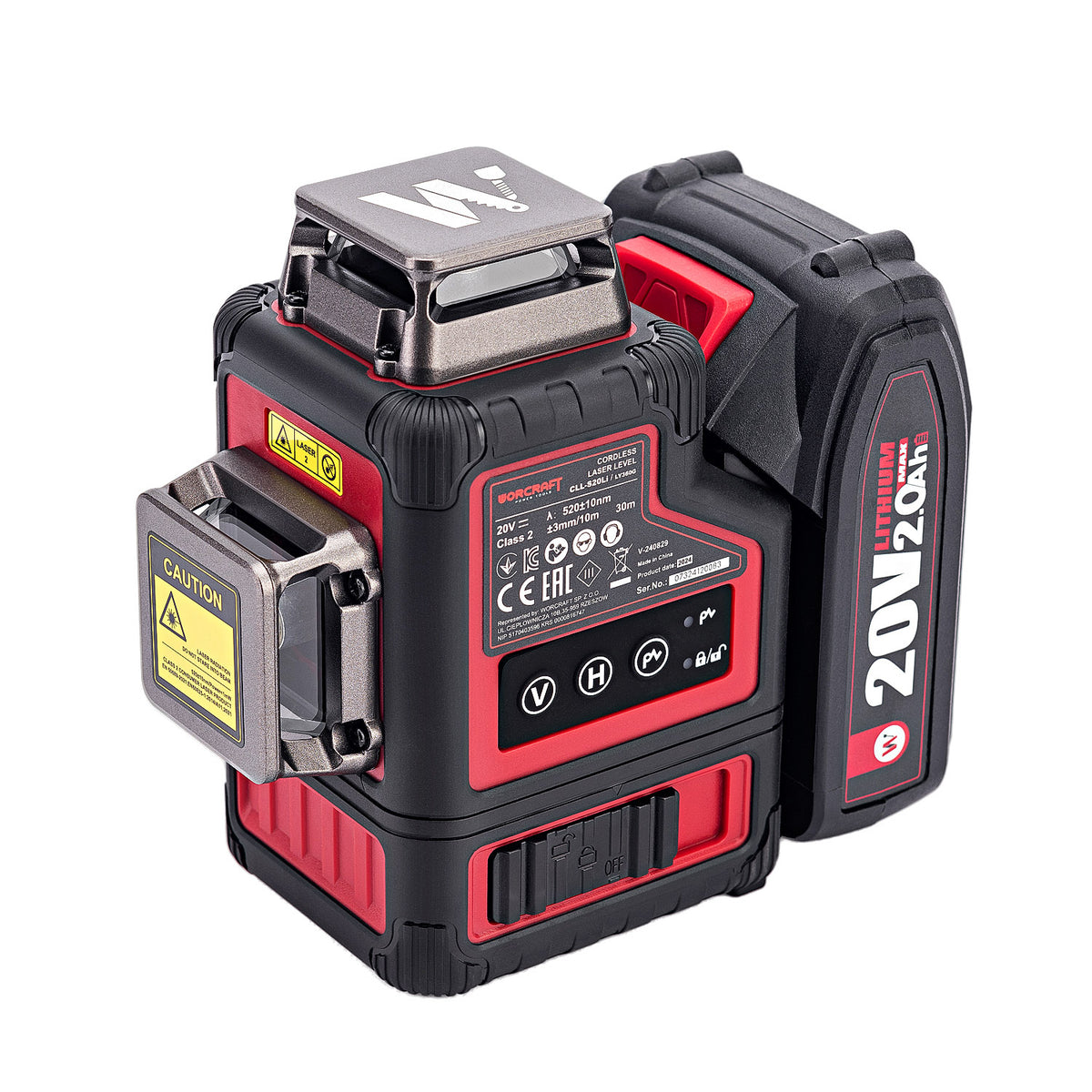

  • Laser: 3 × 360° green beam (12-line), 520 nm OSRAM diode
  • Laser class: Class II, <1 mW
  • Accuracy: ±3 mm at 10 m (horizontal and vertical lines)
  • Self-leveling range: ±4°
  • Leveling time: ≤3 seconds
  • Working range: 30 m (98 ft) by eye; up to 50 m (164 ft) with laser detector
  • Mounting threads: 1/4 in (6.35 mm) and 5/8 in (15.87 mm)
  • Protection rating: IP54 (dust and splash resistant)
  • Operating temperature: 14°F to 122°F (-10°C to 50°C)
  • Power: WorCraft 20V ONE FOR ALL battery (2.0Ah included)

Frequently Asked Questions

Q: Does the laser level come with a battery?
Yes — the set includes a WorCraft 20V 2.0Ah ONE FOR ALL battery and a 1.5A charger, plus a laser detector, protective glasses, tripod, and stackable case. Ready to use out of the box.

Q: Can I use it outdoors or in bright conditions?
Yes — pulse mode works with the included laser detector to pick up the beam over longer distances and in bright or outdoor conditions where the line is hard to see by eye. Working range extends to 50 m (164 ft) in pulse mode.

Q: Can I use it with other WorCraft 20V batteries?
Yes — it runs on any WorCraft 20V ONE FOR ALL battery, including the 4.0Ah pack for extended runtime on long layout sessions.
