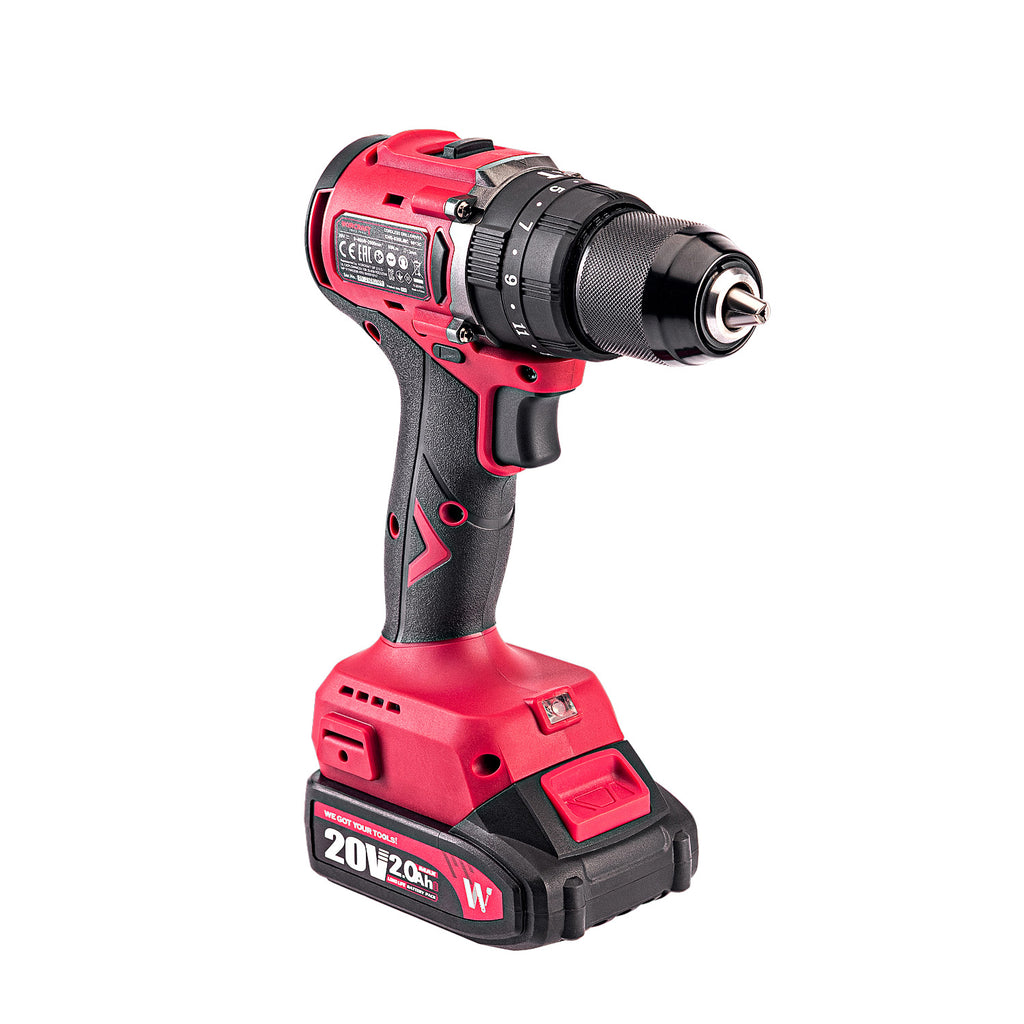

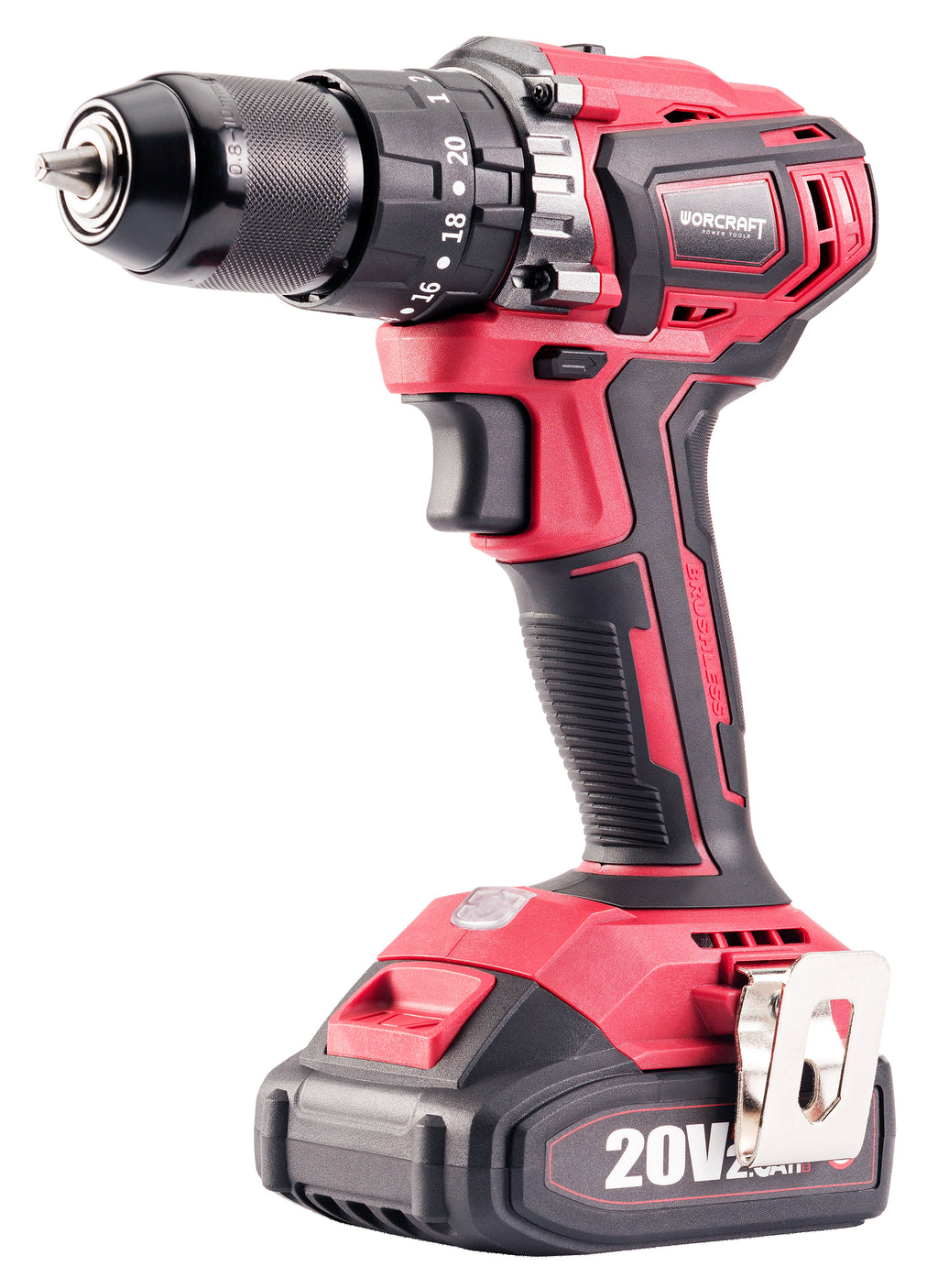

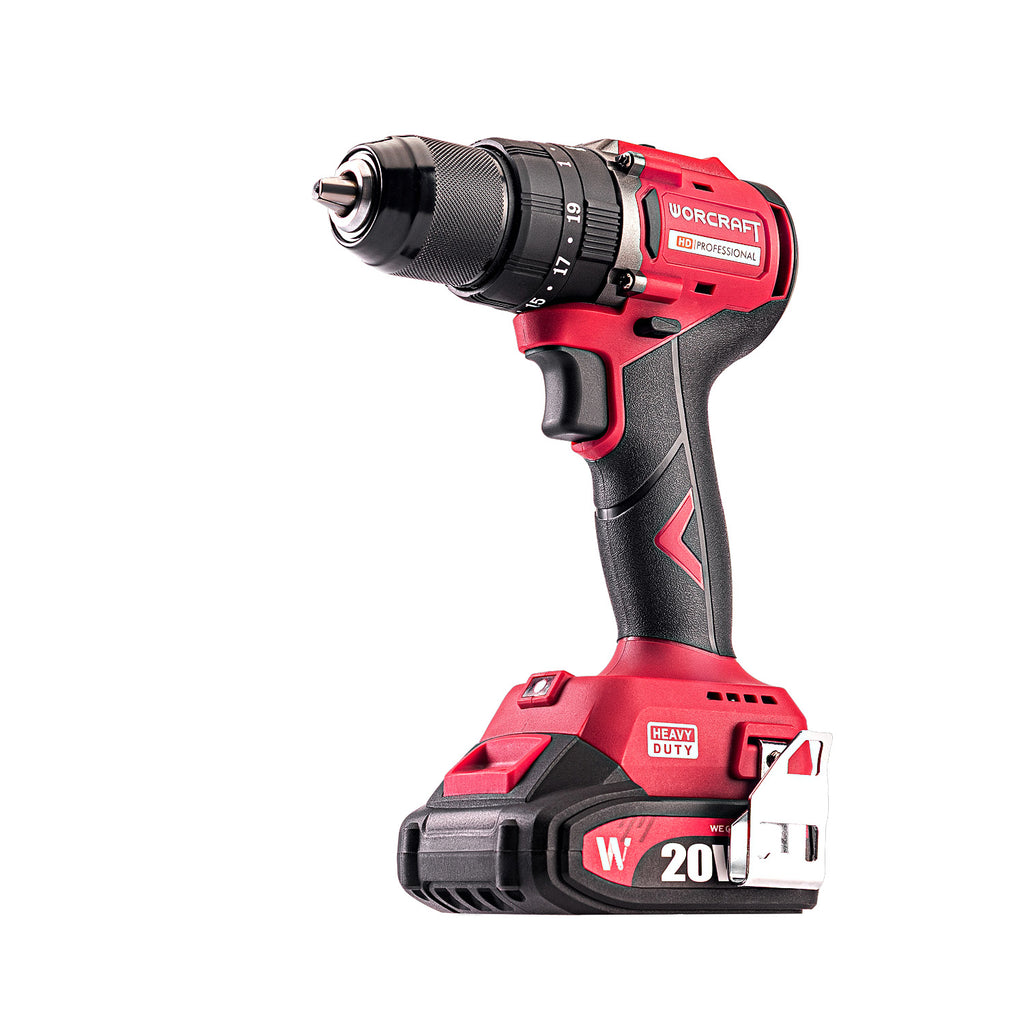

WorCraft 20V Brushless Hammer Drill — 3/8 in or 1/2 in Chuck

Drive screws, drill metal and wood, and hammer into concrete and masonry — the WorCraft 20V Brushless Hammer Drill handles all three from one cordless combi drill. Available in two chuck sizes so you can match the tool to your work: the compact 3/8 in (10 mm) for everyday driving and drilling, or the higher-capacity 1/2 in (13 mm) for larger bits and more demanding applications. Both are brushless with a full-metal keyless chuck, 2-speed gearbox, hammer function, and up to approximately 64 minutes of runtime on a 4.0Ah battery.

Built for Drilling, Driving, and Masonry

A brushless motor delivers longer runtime and tool life than a brushed drill. A 2-speed planetary gearbox switches from high-torque driving to fast drilling, and the hammer function handles anchors and holes in concrete and masonry. Both models include a multi-setting clutch to prevent overdriving, spindle lock, electric brake (Sharp Stop), variable-speed trigger, built-in LED work light, and soft-grip handle.

Choose Your Chuck Size

3/8 in (10 mm) — Model CHD-S20LiBE: The lighter, more compact option for everyday driving and drilling. 0.8–10 mm chuck capacity, 55 Nm max torque, 0–440 / 0–1,650 RPM, 20+1+1 clutch, 2.9 lbs (1.3 kg).

1/2 in (13 mm) — Model CHD-S20LiBC: The higher-capacity option for larger bits and more demanding work. 1.5–13 mm chuck capacity, 60 Nm max torque, 0–460 / 0–2,000 RPM, 19+1+1 clutch, 3.0 lbs (1.36 kg).

• Max drilling capacity: 1/2 in (13 mm) steel; 1-1/2 in (38 mm) wood
• Impact rate: 7,360 / 32,000 bpm

Shared Specifications

• Voltage: 20V
• Motor: Brushless
• Chuck: Full-metal keyless
• Gearbox: 2-speed planetary
• Functions: Drill, drive, hammer/impact
• Features: Multi-setting clutch, spindle lock, electric brake (Sharp Stop), variable-speed trigger, LED work light, soft-grip handle
• Runtime: approx. 64 min (4.0Ah battery)
• Battery platform: WorCraft 20V ONE FOR ALL
• Sold: Tool only — battery and charger sold separately

What’s in the Box

• WorCraft 20V Brushless Hammer Drill (CHD-S20LiBE or CHD-S20LiBC, depending on chuck size selected)
• Belt clip
• Instruction manual

Frequently Asked Questions

Q: What’s the difference between the two chuck sizes?
The 1/2 in (13 mm) model takes larger bits and offers slightly more torque (60 Nm vs. 55 Nm) and speed for demanding work. The 3/8 in (10 mm) model is lighter and more compact for everyday drilling and driving. Both are brushless with a hammer function.

Q: Can this hammer drill go into concrete?
Yes — both versions have a hammer function for drilling anchors and holes in concrete and masonry, and work as standard drill/drivers for wood and metal.

Q: Does it come with a battery?
No — it’s sold tool-only so you can run it on WorCraft 20V ONE FOR ALL batteries you already own. Battery and charger are sold separately.
